33 ARK-3399 User Manual
Chapter 3 BIOS Operation

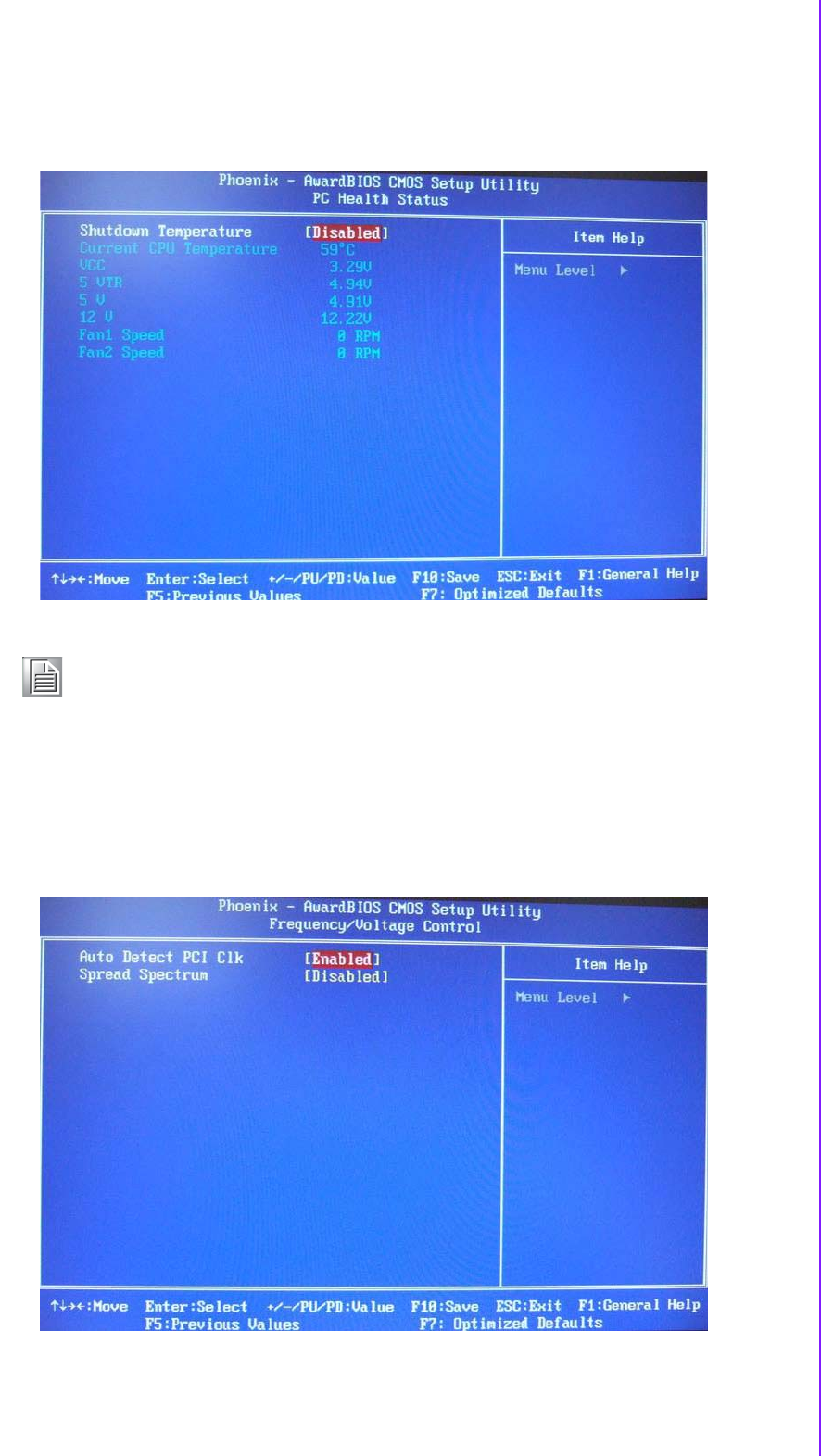

3.2.8 PC Health Status
Shutdown Temperature [Disabled]
This item enables users to set the limitation of CPU temperature, the range is from
85°C through 100°C.
3.2.9 Frequency/Voltage Control
Note! This “PC Health Status” option controls the Thermal, FAN and Voltage
status of the board. this page is developed by Chipset independent.
