23 ARK-3399 User Manual
Chapter 3 BIOS Operation
3.2.1 Main Menu

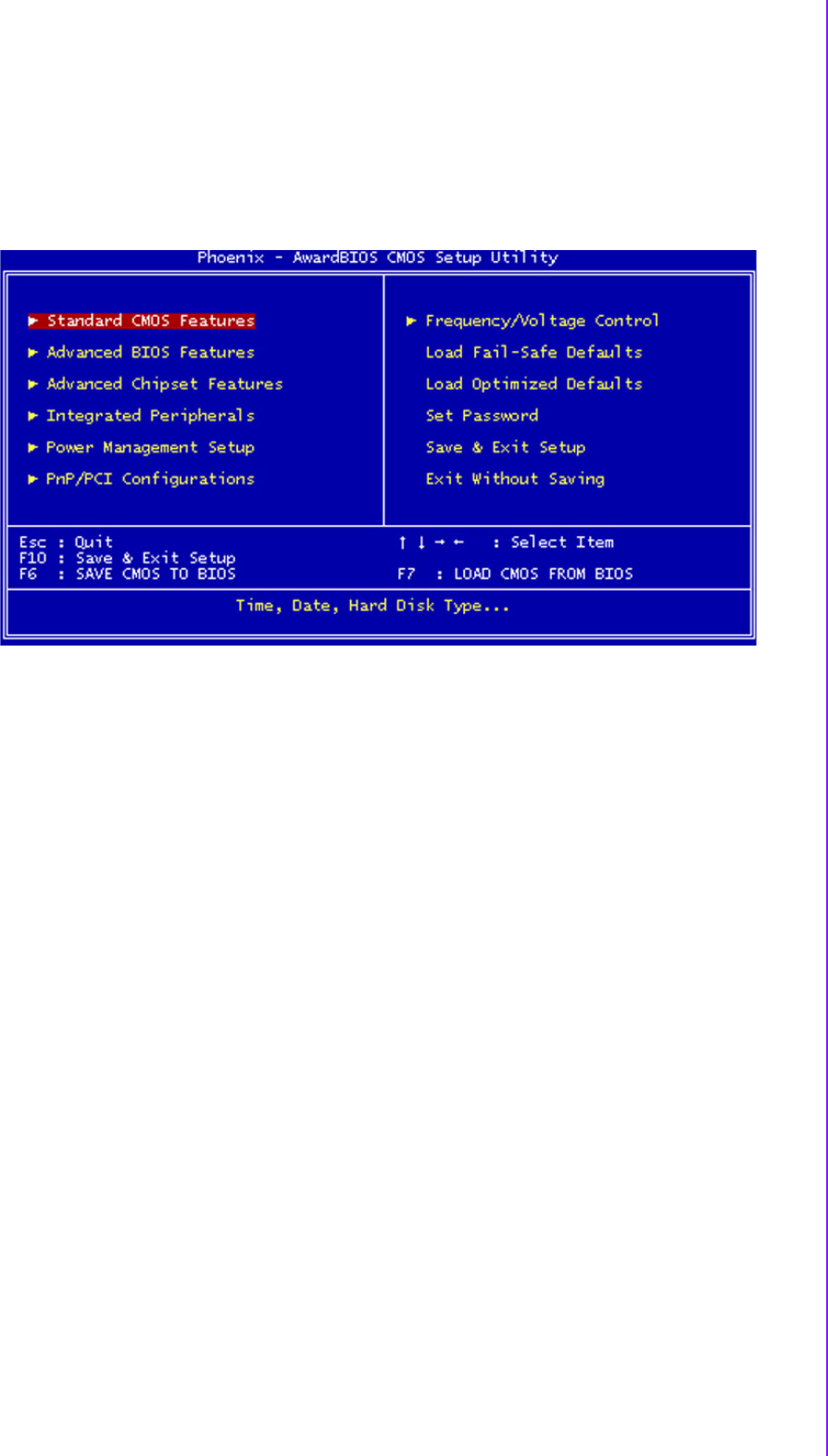

Press <Del> to enter AwardBIOS CMOS Setup Utility, the Main Menu will appear on
the screen. Use arrow keys to select among the items and press <Enter> to accept or
enter the sub-menu.
Standard CMOS Features
This setup page includes all the items in standard compatible BIOS.
Advanced BIOS Features
This setup page includes all the items of Award BIOS enhanced features.
Advanced Chipset Features
This setup page includes all the items of Chipset configuration features.
Integrated Peripherals
This setup page includes all onboard peripheral devices.
PnP/PCI Configurations
This item allows the user to change the Plug and Play and PCI resource setting, such
as IRQ for VGA and USB.
PC Health Status
This item allows the user to monitor the system such as CPU, system temperature
and voltage.
Load Optimized Defaults
This setup page includes Load system optimized value, and the system would be in
best performance configuration.
Set Password
Establish, change or disable password.
Save & Exit Setup
Save CMOS value settings to CMOS and exit BIOS setup.
Exit Without Saving
Abandon all CMOS value changes and exit BIOS setup.
