User's Manual

• Diagnostic LEDs WLAN: Active, Quality

Serial: TX/RX

System: Status, Power

• Surge Protection 15 K V

ESD

• Utility Software Auto-detecting configuration utility(up to 128 devices)

Port mapping utility

• Driver Support Windows® 98/NT/2000/XP

• Power Requirement Unregulated 10 to 30 V

• Power Consumption Max @ 4 Watt

• Mounting DIN-rail, panel mounting, piggyback stack

• Operating Temperature 0 ~ 55℃ (32 ~ 131°℉)

• Storage Temperature -20 ~ 75℃ (-4 ~ 167°℉)

• Operating Humidity 20 ~ 95% (non-condensing)

• Storage Humidity 0 ~ 95% (non-condensing)

1.4 Package Checklist

• CD-ROM for utility and manual

• 1/2 pcs of 1m RJ-48 to male DB-9 RS-232/422/485 cables

• One RS-232 loopback DB-9 tester

• EMI Dia. 7.8mm/L82mm Wireless LAN Antenna

• Five stickers

• NYLON DIN-rail Mounting Adapter

• SECC Panel Mounting Bracket

1.5 Ordering Information

• ADAM-4570W 2-port RS-232/422/485 to WLAN Data Gateway

(2pcs of 1m RJ-48 to male DB9 RS-232/422/485 cable included)

• ADAM-4571W 1-port RS-232/422/485 to WLAN Data Gateway

(1pcs of 1m RJ-48 to male DB9 RS-232/422/485 cable included)

• OPT1A 1m RJ-48 to male DB9 RS-232/422/485 cable

• OPT1D 30cm RJ-48 to male DB9 RS-232/422/485 cable

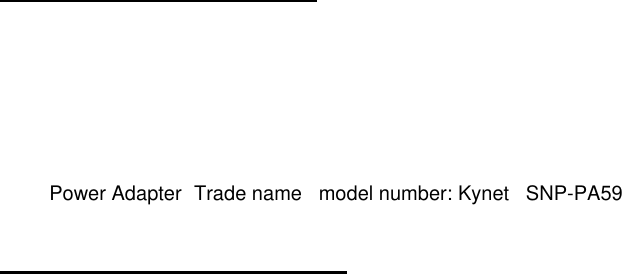

• Power Adapter (Trade name / model number: Kynet / SNP-PA59 )
