Main Controls

The AWCBX400 Main controls are shown in Figure 10. These controls are outlined below:

 CALL BUTTON ESCILLATION LEVELS: Number of times the message is repeated, 0-10

 CALL BUTTON ESCALATION DELAY: Delay in seconds between repeated messages, 0-255

 CALL BUTTON TIMEOUT: Less than 18 Hours

 RELAY BUTTON ESCALATION LEVELS: Number of times the message is repeated, 0-10

 RELAY BUTTON ESCALATION DELAY: Delay in seconds between repeated messages, 0-255

 TRANSMIT DELAY: 2-5 seconds max. (Must be >1 second for TCXO stabilization)

 DC SUPPLY ALARM THRESHOLD: 4.9 – 10 VDC

 DC SUPPLY ALARM THRESHOLD DURING TX: 4.9 – 10 VDC

 SQUELCH LEVEL: 0-100%

 POLARITY: Positive or Negative

 ERROR REPEAT TIME: 0-21Hrs 15min (5 minute increments) Time Between System Status Msg

DISPLAYS ONLY:

 M1 MESSAGE LENGTH: Length in seconds after downloaded from Call Box

 M2 MESSAGE LENGTH: Length in seconds after downloaded from Call Box

 M3 MESSAGE LENGTH: Length in seconds after downloaded from Call Box

 M4 MESSAGE LENGTH: Length in seconds after downloaded from Call Box

 FIRMWARE VERSION: Current Firmware version after download

Device Menu

The AWCBX400 Device tab allows you to read and write data to and from the call box.

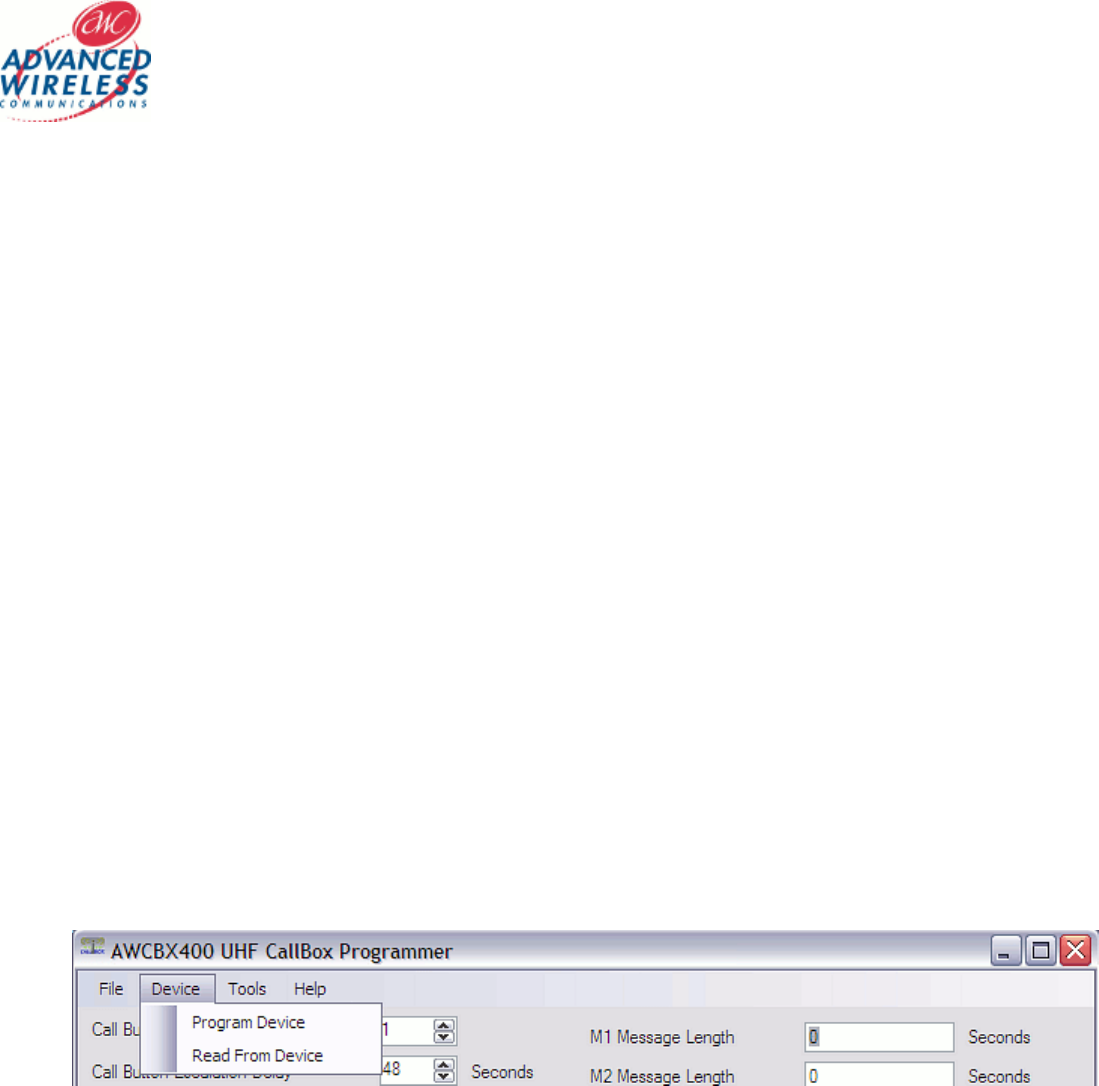

Figure 11
