5.0. Technical Specifications
Universal Serial Bus Interface
Power source ....................................... From USB
Speed................................................... 12 Mbps (Full Speed)
Supply Voltage ..................................... Regulated 5V DC
Supply Current ....................................
Contactless Smart Card Interface
Standard............................................... ISO 14443 A & B Parts 1-4
Protocol ................................................ ISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for Mifare series
Smart card read / write speed............... 106 kbps, 212 kbps, 424 kbps, 848 kbps
Operating frequency ............................. 13.56 MHz
Operating distance ............................... up to 50 mm (depends on card type)
Antenna size......................................... 65mm x 60mm
Contact Smart Card Interface
Standard...........................................
T=0 and T=1
Supply current .....................................
Short circuit protection ......................... +5V / GND on all pins
CLK frequency...................................... 4.80 MHz
Card connector..................................... Landing
Card insertion cycles ............................ min. 200,000
SAM Card Interface
Standard............................................... ISO 7816
Protocol ................................................ T=0 and T=1 protocol
Bulti-in Peripherals
Buzzer .................................................. Monotone
LEDs .................................................... Red and Green
Casing

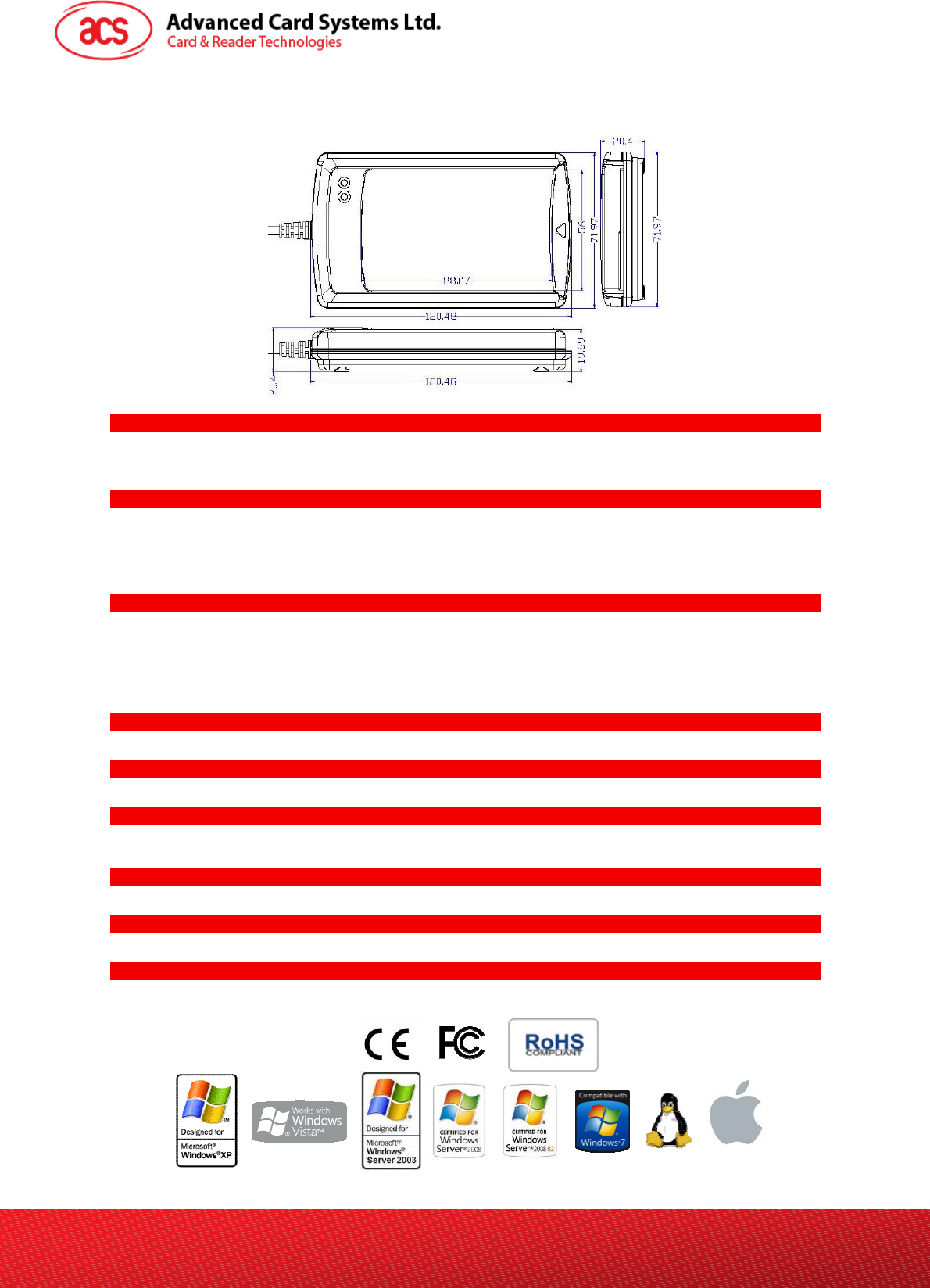

Dimensions........................................... 120.48 mm (L) x 71.97 mm (W) x 20.4 mm (H)
Weight .................................................. 150 g
Color..................................................... Black
Operating Conditions
Temperature......................................... 0 - 50° C
Humidity ............................................... 10% - 80%
Compliance/Certifications
PC/SC, CCID, CE, FCC, RoHS Compliant, USB Full Speed
Microsoft WHQL Windows 2000, XP, Vista, 7
OS Support
Windows 2000, XP, Vista, 7, Server 2003, Server 2008, Server 2008 R2
Linux, Mac
<
