Operation and Maintenance Manual

and host firearm. A malfunctioning silencer and/or host firearm is a
dangerous situation that can lead to property damage, personal injury
and/or death.
WARNING! All traces of solvent must be allowed to evaporate prior
to reassembling the A.S.A.P. System. Failure to remove all traces of
solvent from the A.S.A.P. System prior to use may lead to property
damage, personal injury and/or death.
4. Inspect the O-ring located in the bore of the rear cap. The O-ring is
shown colored red in Figures 11 and 12. If it is worn or frayed, replace
it. NOTE: See the O-ring fitment guide at the end of this manual for re-
placement O-ring procure-
ment information.

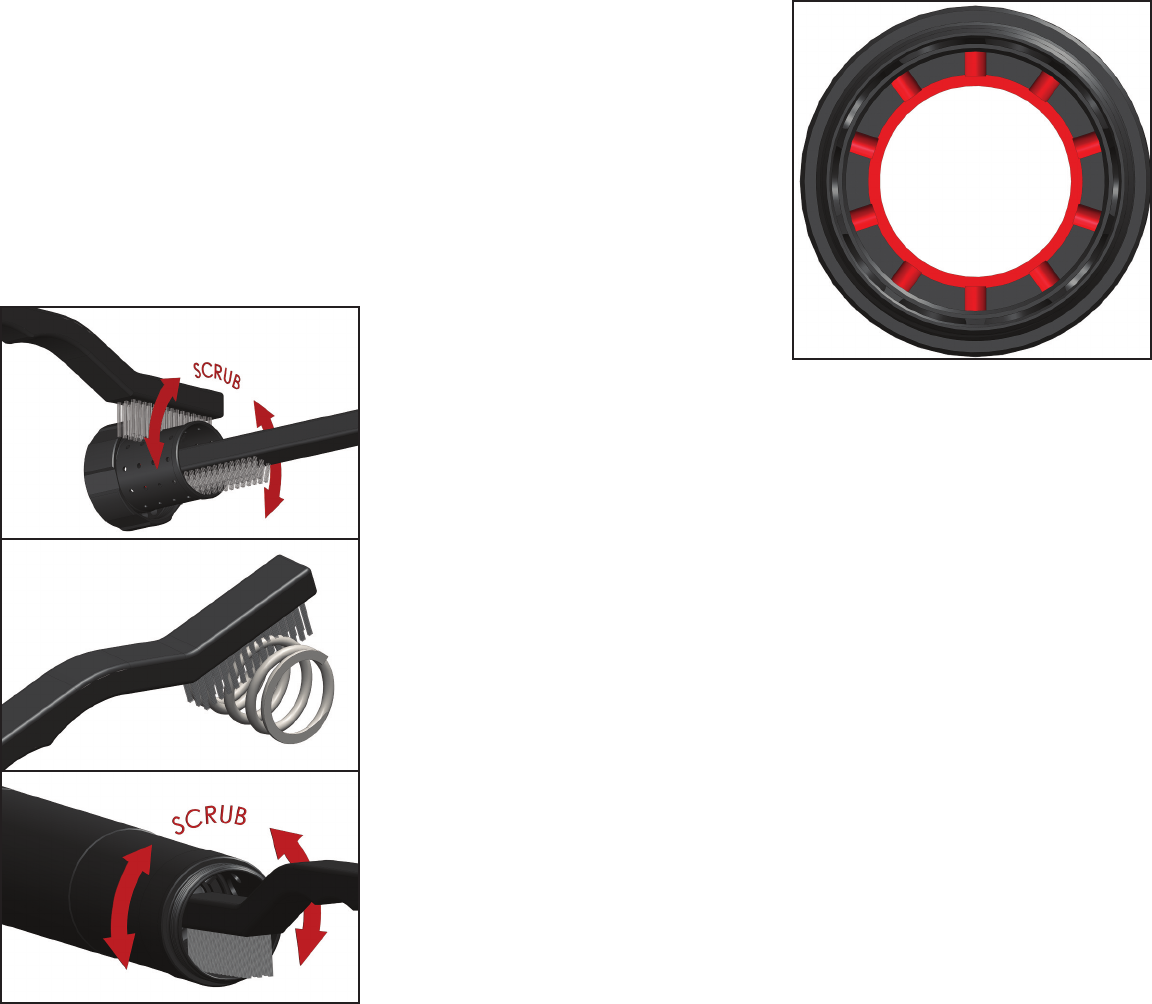

5. Using a plastic bristle brush
and solvent, clean the driving
spring of any loose material
or carbon buildup. See Fig-
ure 16.
6. Using a plastic bristle brush
and solvent, scrub the inter-
face bore in the rear of the si-
lencer. See Figure 17. Insure
the piston index notches and
piston stop-surfaces located
on the inside of the piston
housing are free of carbon
buildup. The piston stop-sur-
face and index notches are
shown colored red in Figure
18.
7. Apply a small amount of
white lithium grease or anti-
seize compound to the O-
ring in the rear cap (shown
colored red in Figures 11 and
12).
BAFFLE STACK REMOVAL,
AND MAINTENANCE
It is recommended users re-
move and clean the baffles in a
Ti-RANT 45-M silencer after
every 750 rounds of dry use or
after every 250 rounds if the si-
lencer is used with an artificial
environment. See the "Using
your Ti-RANT 45-M with an Ar-
tificial Environment" section for
more information on artificial en-
vironments.
WARNING! Only perform
cleaning and maintenance procedures on silencers that are not
mounted to a firearm. Attempting to clean or perform maintenance
on a mounted silencer could lead to property damage, personal injury
and/or death.
1. If the silencer is mounted to a host firearm, remove it. See “Removing
your Ti-RANT 45-M from a host firearm”.
2. If the A.S.A.P. System is currently installed in the silencer, remove it.
See “Disassembling your Ti-RANT 45-M A.S.A.P. System”.
3. If your silencer is configured as a full sized model, grasp the silencer
around the circumference of the front module and unscrew and remove
the front end cap. See Figure 4.
4. Disassemble the A.S.A.P. System. See "A.S.A.P. System Disassembly"
in these instructions.
5. Grasp the silencer around the circumference of the main tube and un-
screw and remove the front module. See Figure 5.
6. Insert a 5/8" rod of wood, plastic, or steel from the rear of the silencer,
through the piston housing, and up against the rear face of the blast baf-
fle. While holding the silencer tightly in one hand and the dowel in the
other hand, apply force to the dowel to push the baffle stack out the front
of the tube. See Figure 19. If the baffles will not push out with hand pres-
SILENCER MODEL Ti-RANT 9-M P.9 SILENCER MODEL Ti-RANT 9-M P.10
Figure 15
Figure 16
Figure 17
Figure 18
