Operation and Maintenance Manual

preceding baffle so that the out-
put ports are aligned. See Figure
35
10. Install the front end cap in the
front module. See Figure 36.
WARNING! Do not install and use
a Ti-RANT 45-M silencer with an
improperly assembled baffle
core. Using a Ti-RANT 45-M si-
lencer with an improperly assem-
bled baffle core may lead to
property damage, personal injury
and/or death.
INSTALLING THE A.S.A.P. SYS-
TEM
1. Place the driving spring in the
bore of the piston housing. See
Figure 37.
2. Insert the piston into the piston
housing assembly. See Figure
38.
3. Thread the reassembled piston
housing assembly onto the ex-
posed threads on the rear of the
interface on the main tube body.
See Figure 39.
FIXED BARREL SPACER IN-
STALLATION
The driving spring of the A.S.A.P.
System may be replaced with the
separately available AAC Fixed Bar-
rel Spacer when using a Ti-RANT
45-M silencer on a host firearm with
a fixed (non-moving) barrel.
WARNING! When using a Ti-RANT 45-M silencer on a host firearm
with a fixed (non-moving) barrel, the driving spring of the A.S.A.P.
System must be replaced with the AAC Fixed Barrel Spacer. Failure
to install and use the AAC Fixed Barrel Spacer in a Ti-RANT 45-M si-
lencer when using it on a host firearm with a non-moving barrel can
result in accelerated wear to the silencer and fixed-barrel host
firearm. Accelerated wear to the silencer and host firearm can result
in a dangerous situation that can lead to property damage, personal
injury and/or death.
1. Disassemble the A.S.A.P. System. See “Disassembling your Ti-RANT
45-M A.S.A.P. system”.
2. Install the fixed barrel spacer in
the piston housing bore. See Fig-
ure 40.
3. Insert the piston into the piston
housing assembly. See Figure
38.
4. Thread the reassembled piston
housing assembly onto the ex-
posed threads on the rear of the
interface on the main tube body.
See Figure 39.
NOTE: With the fixed barrel spacer
installed, there will be a slight gap
between the rear cap and the inter-
face. See Figure 41. This is per-
fectly normal and not cause for concern.
USING YOUR Ti-RANT 45-M WITH AN ARTIFICIAL ENVIRONMENT
In situations where it is advantageous to eliminate the majority of muzzle
and ejection port flash and/or sound, the Ti-RANT 45-M silencer can be
used with an internal artificial environment in place. The term, "artificial en-
vironment" refers to the environment inside the silencer being composed
of anything other than dry air. The recommended artificial environment
media for the Ti-RANT 45-M is water. An artificial environment made of
5cc's of water will influence sound performance for approximately 50 shots
SILENCER MODEL Ti-RANT 9-M P.15 SILENCER MODEL Ti-RANT 9-M P.16

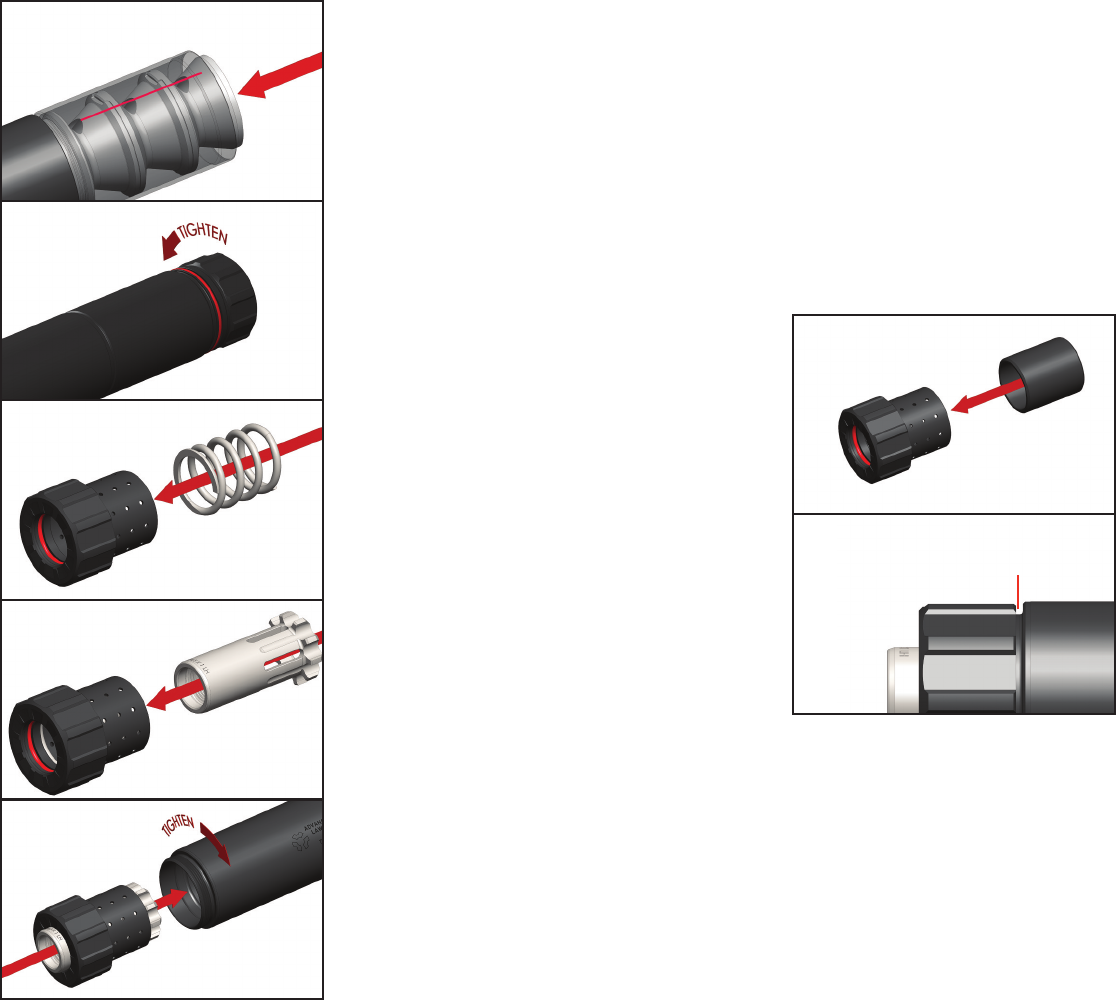

Figure 35
Figure 36
Figure 37
Figure 38
Figure 39
Figure 40
Figure 41
Gap
