User's Manual

APR. 25, 2003
ALA761 IN
7
(See Feature IV – 3 Programming) (Factory default setting on momentary grounded)
This wire is built-in user-programmable timer output provides a ground through this wire. Press the
transmitter
and
button at the same time. You may program the built-in timer to send a ground
signal for any time interval between 1 second and 2 minutes. For instance, this timer output may be
used to turn on the headlight with the remote control. Also on certain BMW, Mercedes Benz, Jaguar
and Volkswagen cars, you can use this unique timed output to allow remote closure of all power window
and sunroof without the need for an external module!
H8/12. White / Red Wire – (-) 200mA Factory Security Disarm Signal Output –
This wire is designed to disarm a factory installed security system. This wire sends a negative (-) 1
seconds pulse upon a remote start and remote door unlocking. This makes integration of this system
into a vehicle with a factory alarm very simple. In most cases, this wire may be connected directly to the
factory alarm disarm wire. The correct wire will show nagative ground when the key is used to unlock
the doors or trunk. This wire is usually found in the kick panel area in the wiring harness coming into the
car body from the door.
H8/13. Black / Violet wire – (-) 200mA Timer Control Channel 6 Output –
(See Feature IV – 4 Programming) (Factory default setting on momentary grounded)
This wire is built-in user-programmable timer output provides a ground through this wire. Press the
transmitter
and button at the same time. You may program the built-in timer to send a ground
signal for any time interval between 1 second and 2 minutes. For instance, this timer output may be
used to turn on the headlight with the remote control. Also on certain BMW, Mercedes Benz, Jaguar
and Volkswagen cars, you can use this unique timed output to allow remote closure of all power window
and sunroof without the need for an external module!

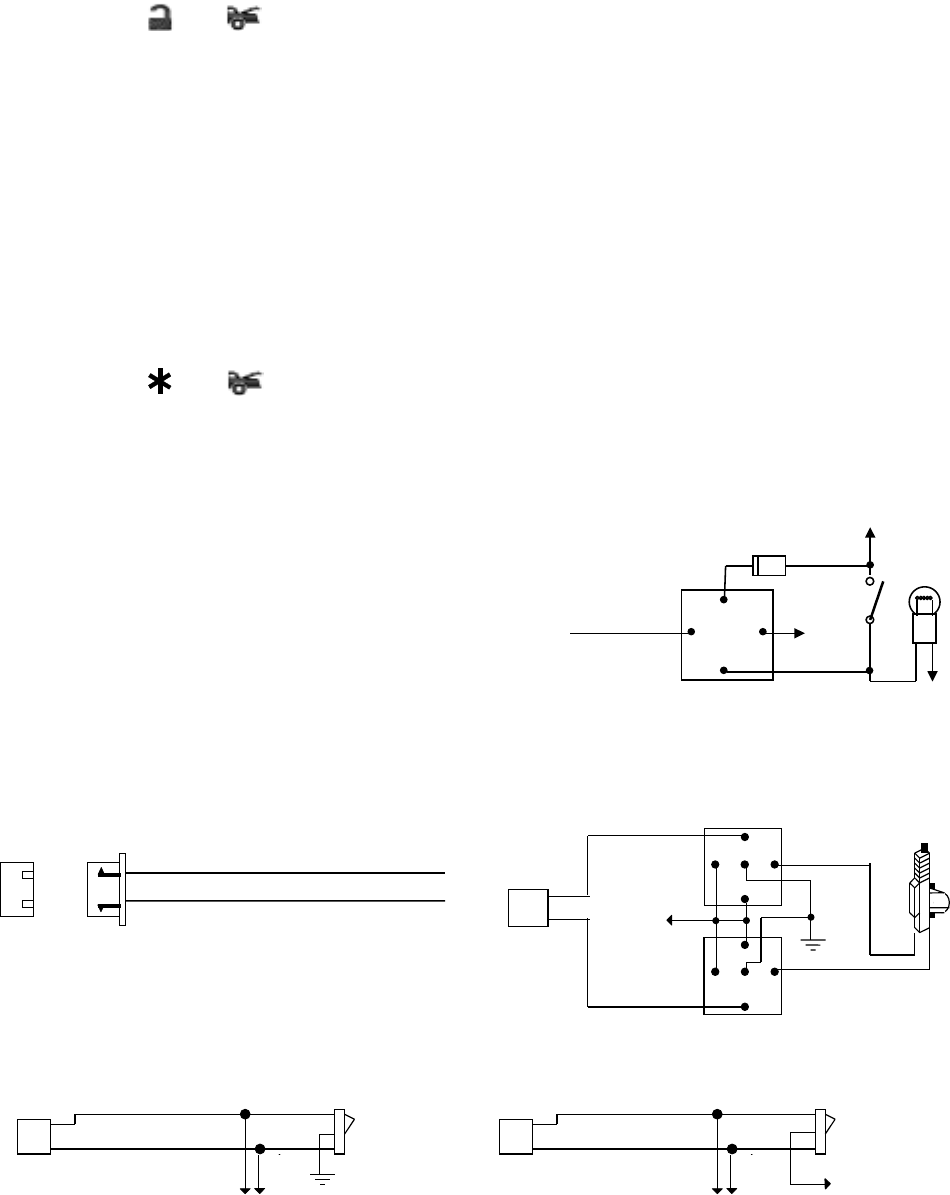

H8/14 White wire – (-) 200mA Dome Light Control Output –
This wire becomes grounded when the dome light
controls circuit active. The current capacity of this
wire is 200mA. This wire can control the operation of
the interior lights. An optional 10 Amps relay can be
used to this system for interior lights operation.
a). Upon disarming, the interior lights will remain on
for 30 seconds.
87a
86
87
30
85
Fuse
White Wire
+12V
Door
Switch
Courtesy
Light
b). If the vehicle is violated, the interior light will flash for the same duration as the siren.
H4. 3 PIN DOOR LOCK CONNECTOR:
Blue
Wire
Green
Wire
( - ) Lock Pulse
( + ) Unlock Pulse
( - ) Unlock Pulse
(
+
)
Lock Pulse
I
INSTALL NEW DOOR LOCK MOTOR
Blue Wire
Green Wire
+12V
30
86
87a
85
87
30
86
87a
85
87
3 Pin
Plug To
Alarm
NEGATIVE TRIGGER DOOR LOCK SYSTE
Blue Wire Door Unlock
Green Wire Door Lock
Locking
Master
Switch
To Exiting
Door Lock Relay
POSITIVE TRIGGER DOOR LOCK SYSTEM
Blue Wire Door lock
Green Wire Door Unlock
Locking
Master
Switch
To Exiting
Door Lock Relay
+ 12V
