User's Manual

APR. 25, 2003
ALA761 IN
4

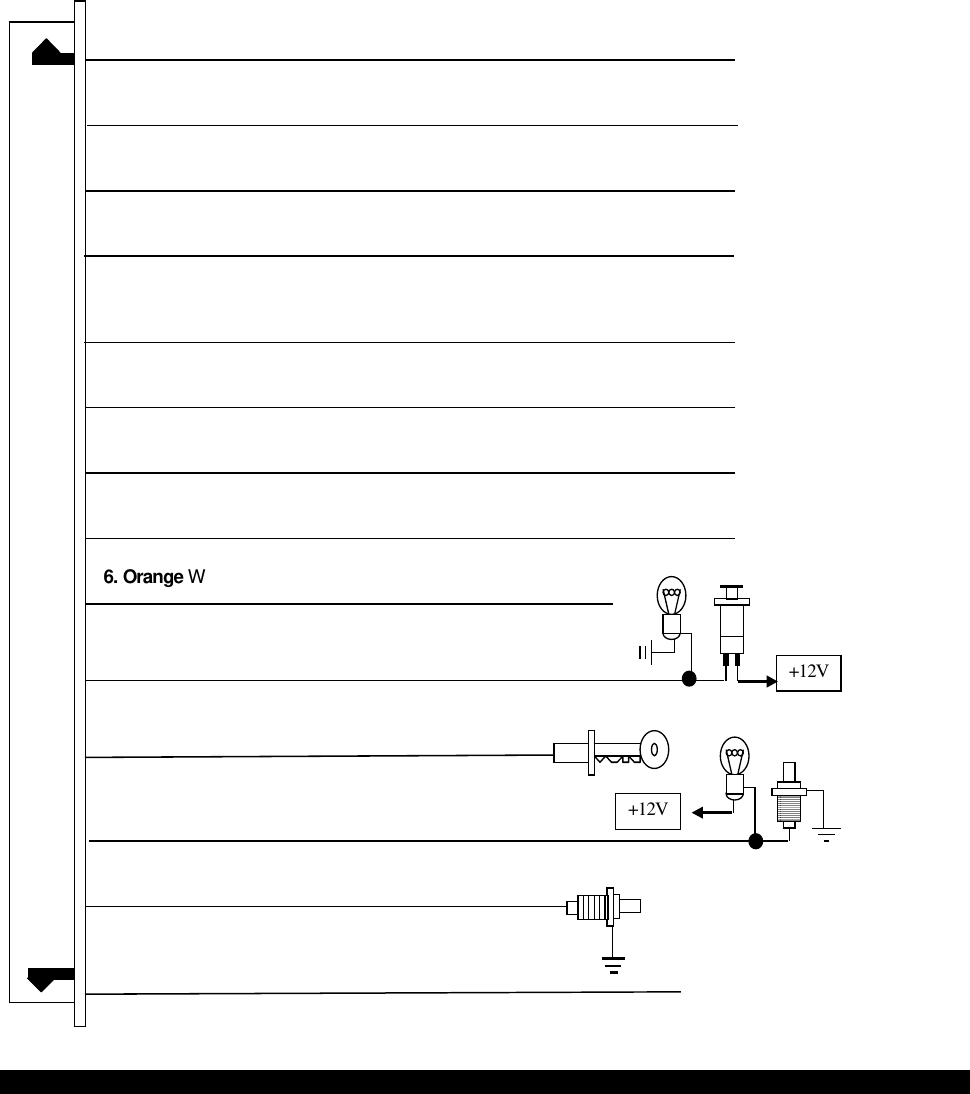

#H8. 14 PIN WHITE CONNECTOR FOR OUTPUT CONNECTION
7. Orange / White
Wire: (-) 200mA Ground Output When Disarmed
8. Pink
Wire: (-) 200mA 2 Steps Door Unlock Output
9. Gray
Wire: (-) 200mA Channel 3 Timer Control Output
2. Blue
Wire:
Zone
2
Instant Trigger Ground Input
12. White/Red
Wire: (-) 200mA Factory Security Disarm Output
13. Black/Violet
Wire: (-) 200mA Channel 6 Timer Control Output
11. Black/Red
Wire: (-) 200mA Channel 5 Timer Control Output
3. Green
Wire:
Zone 3
/ Negative Door Pin Trigger Input:
5 . Violet
Wire:
Zone 3
/ Positive Door Pin Trigger Input





+12V
+12V
6. Orange
Wire: (-) 200mA Grounded Output When Armed
14. White
Wire: (-) 200mA Dome light Output
4. Yellow
Wire: Zone 5 / To Ignition Switched + 12V
10. Black/Green
Wire: (-) 200mA Programmable Output
Channel 4 Timer Control Output (Factory Default Setting)
Or Horn Output
1. Black/White
Wire: No Use
WIRING
Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. Tape wires that pass
through holes on the firewall to prevent fraying. Watches out sharp edges that may damage wires and
causes short circuit.
CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete.
H1: 5 PIN WIRE HARNESS:
H1/1 Red / White wire – Parking Light Relay Power Input –
The RED/WHITE wire is the input to the flashing parking light relay. The connection of the RED/WHITE
wire will determine the output polarity of the flashing parking light relay.
