EQUIPMENT MANUAL

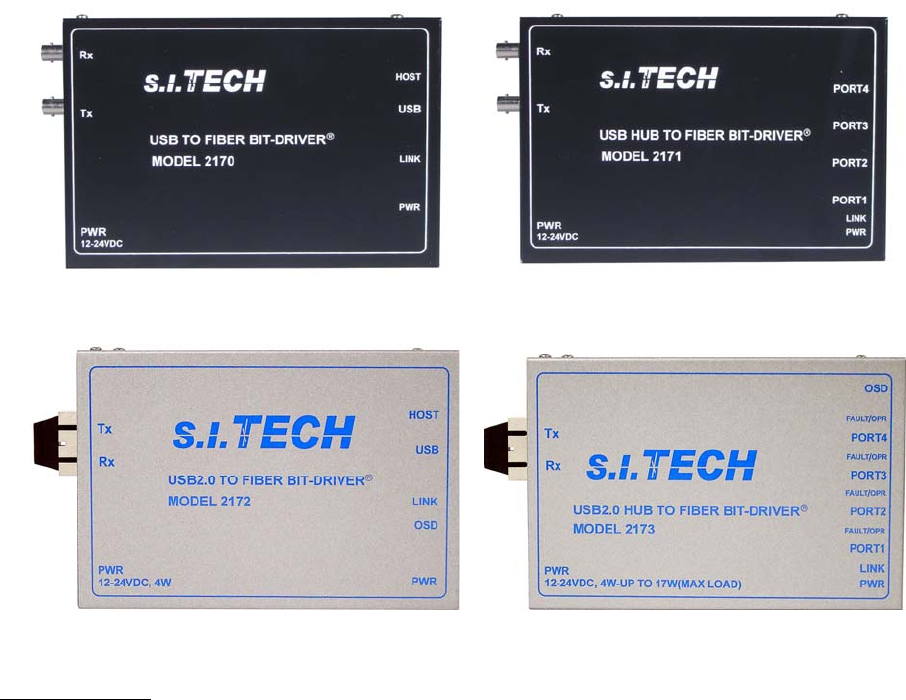

S.I. Tech Models 2170/2171/2172/2173 USB Fiber Products

INTRODUCTION

The S.I.Tech Models 2170 and 2171 products support USB 1.1 to fiber conversion.

The S.I.Tech Models 2172 and 2173 products support USB 2.0 to fiber conversion.

PRODUCT SPECIFICATIONS

Models 2170/2171

• Operation Mode: USB 1.1

• Input/Output Interface: USB 1.1 2170-Type B, 2171-Type A

• Transmission Line Interface: ST optical connector (standard)

• Transmission Distance: See distance chart below

• Transmitter Output Power: 25µw into 62.5/125 micron fiber

• System Wavelength: 850nm (1300nm option)

• Data Rate: USB 1.0 (Low Speed) USB 1.1 (Full Speed)

• Bit Error Rate: 10

-9

• Receiver Sensitivity: 2µw

• Operating Temperature: 0

C to 50

• Weight: 1.0lb (454 grams)

• Power: External with power supply (S.I.Tech #2164-100 to 240VAC 50/60Hz to 12VDC, UL, CSA, CE &

TUVGS listed). 10 to 32V, 2170-2 Watts Max, 2171-2 Watts Min/14 Watts Max.

• Metal Enclosure: 5.75” X 3.8” X 1.63” (14.6 X 9.6 X 4.2 cm)

Summary of content (8 pages)

PAGE 1
EQUIPMENT MANUAL S.I. Tech Models 2170/2171/2172/2173 USB Fiber Products INTRODUCTION The S.I.Tech Models 2170 and 2171 products support USB 1.1 to fiber conversion. The S.I.Tech Models 2172 and 2173 products support USB 2.0 to fiber conversion. PRODUCT SPECIFICATIONS Models 2170/2171 • • • • • • • • • • • • • Operation Mode: USB 1.1 Input/Output Interface: USB 1.
PAGE 2
Operating Distance for Fiber Optic Cable Fiber Size Attenuation Distance Distance (Microns) (dB/Km) (Meters) (Feet) 50 3.0 2000 6600 62.5 4.0 2000 6600 10* 1.0 5000 16000 * Single mode option-1300nm (Application limits may be exceeded) Models 2172/2173 • • • • • • • • • • • • • Operation Mode: USB 2.0 Input/Output Interface: USB 2.
PAGE 3
S.I.Tech supplies part # 7170 for USB 1.1 and part # 7172 for USB 2.0 type A to B cable assemblies to connect to computer’s USB port. Use appropriate cable for your application. Optical Input/Output Interface S.I.Tech Models 2170 and 2171 come standard with ST connectors for both multimode and single mode. 2170 and 2171 are used in pairs. See typical application drawing Figure 1. COMPUTER SERVER SCANNER Type B USB Cable FIBER OPTIC S.I.
PAGE 4
S.I. TECH MODELS 2170 AND 2171 (USB 1.1 PRODUCTS) LED Definition LED POWER LINK HOST PORT 2170 Power ON Optical signal from 2171 detected 2170/2171 pair enumerated with host USB 2171 Power ON Host USB data detected Host USB data detected at port Installation 1. 2. Connect fibers between Model 2170 and Model 2171 Apply power to model 2170 and model 2171 PWR On 3. HOST Off PWR On 2171 LEDs LINK Off PORT Off Connect 2170 to PC with USB cable PWR On 4.
PAGE 5
S.I. TECH MODELS 2172 AND 2173 (USB 2.0 PRODUCTS) The 2172 / 2173 pair provides a remote 4-port USB2.0 hub carried over optical fiber. Each of the ports supports any combination of USB2.0 (high-speed), USB1.1 (full-speed) or USB1.0 (low-speed) devices. Before using, confirm that the host PC has USB2.0 host controller (the 2172 / 2173 pair is not compatible with other host controllers).
PAGE 6
LED Definitions 2172 Power ON Optical signal detected Logically connected to 2173 Host communication with 2173 hub detected --- Power OSD LINK HOST OPR FAULT 2173 Power ON Optical signal detected Logically connected to 2172 with host data detected -Port operational Port overcurrent fault POWER The Models 2170/2171/2172/2173 can be powered from normal 12VDC power. Use S.I.Tech Model 2164 (5W) power module as it has 110VAC or 240VAC input and 12VDC output.
PAGE 7
IOGear 160GB USB 2.0 HDD Creative WebCam Live! Pro Creative WebCam Live! Motion ADS USB 2.0 Turbo Webcam Sony Micro Vault 128MB Flash Lexar Pro Jumperdrive 2GB Flash SanDisk Cruzer Mini Flash Drive 128MB Sony Combo flash drive and Memory Stick Reader Passmark Loop back plug BAFO USB 2.0 Hub (NEC Chip) Belkin Tetra Hub (Cypress Chip) D-Link DUB7 7port Hub (Philips Chip) USB 1.
PAGE 8
IMPORTANT If after performing troubleshooting, the unit is still not working, check with an S.I. Tech application engineer. For optical unit service, call or write S.I. Tech Inc. at P.O. Box 609, Geneva, IL 60134, USA. Phone: 630-761-3640. Web site: http://www.sitech-bitdriver.com. Email: tech@sitech-bitdriver.com.
