- ARESCOM NetDSL 800 ADSL Modem version 5.2b1 User's Guide
Table Of Contents
- Heading1TOC - 1. Before You Begin
- Heading1TOC - 2. Hardware Installation
- Heading1TOC - 3. Software Installation
- Heading1TOC - 4. NetDSL Manager
- Heading1TOC - 5. Configuration
- Heading1TOC - 6. Status Feature
- Heading1TOC - 7. Tools Feature
- Heading1TOC - 8. Troubleshooting
- Heading1TOC - Appendices
- Heading1 - Before You Begin
- Heading1 - Hardware Installation
- Heading2 - 2.1 Diagram of the NetDSL
- Heading2 - 2.2 Safety First
- Heading2 - 2.3 Setup Instructions
- Heading2 - 2.4 Connect to the Ethernet
- 1Step - Step 1. Locate your Ethernet cable (included).
- Step - Step 2. Attach the Ethernet cable to the Ethernet interface of your NetDSL.
- Step - Step 3. Plug in the loose end of the Ethernet cable to your Ethernet network.
- Figure - Figure 2.3 Connecting to a Ethernet Port on a PC
- Figure - Figure 2.4 Connecting to the Uplink Port on a Network Hub
- Figure - Figure 2.5 Connecting to the Non-Uplink Port on a Network Hub
- Heading2 - 2.5 Connect to the ADSL Interface
- Heading2 - 2.6 Connect to the USB Interface
- 1Step - Step 1. Plug the Type-B (square-shaped) end of the USB detachable cable (included) into t...
- Step - Step 2. Plug the Type-A (flat-shaped) end of the USB detachable cable into the USB port of...
- Step - Step 3. Do not turn on the power switch until software installation is complete. Proceed t...
- Figure - Figure 2.7 Connecting to the USB Interface
- Heading2 - 2.7 Connect to Power
- Heading1 - Software Installation
- Heading2 - 3.1 About TCP/IP
- Heading2 - 3.2 Detecting TCP/IP in Windows® 95/98
- Heading2 - 3.3 Installing TCP/IP in Windows® 95/98
- 1Step - Step 1. From the Configuration tab in the Network window, click Add.
- Step - Step 2. Select Protocol for the type of network component, and click Add.
- Step - Step 3. Choose Microsoft for Manufacturers list box and TCP/IP for Network Protocols list ...
- Step - Step 4. Check to see TCP/IP is listed under Network Components.
- Heading2 - 3.4 Configuring TCP/IP in Windows® 95/98
- 1Step - Step 1. From the Configuration tab, select TCP/IP (for Ethernet adapters) listed under Ne...
- Step - Step 2. Select the IP Address tab.
- Step - Step 1. Click Obtain an IP Address automatically.
- Step - Step 2. OPTIONAL* Click the DNS Configuration tab and select Disable DNS. If you previousl...
- Step - Step 3. Select the Gateway tab and then click Remove to clear all pre-existing settings.
- Step - Step 4. Click OK to exit TCP/IP Properties window and click OK to exit Network window. Whe...
- 1Step - Step 1. Click Specify an IP Address and then type the IP Address and Subnet Mask (for you...
- Step - Step 2. Click the Gateway tab.
- Step - Step 3. Type in your Gateway IP Address (the LAN IP address for the NetDSL) from your ISP ...
- Step - Step 4. Click the DNS tab. Enter the Host name, Domain name, and DNS Service Search Order ...
- Step - Step 5. Click OK to exit TCP/IP Properties window and click OK to exit Network.
- Step - Step 6. When prompted, restart Windows® 95/98. If you are not prompted to restart Windows®...
- Heading2 - 3.5 Detecting TCP/IP in Windows® 2000
- 1Step - Step 1. Turn on your computer and log-in to Windows 2000.
- Step - Step 2. Click the Start button and select Settings.
- Step - Step 3. Choose Control Panel, and then double click Network and Dial-up Connections icon
- Step - Step 4. Double click on the Local Area Connection icon. In the Local Area Connection Statu...
- Step - Step 5. In the Local Area Connection Properties window:
- Heading2 - 3.6 Installing TCP/IP in Windows 2000
- 1Step - Step 1. From the General tab in the Local Area Connection Properties window, click Install.
- Step - Step 2. In the Internet Protocol (TCP/IP) Properties window, select the Protocol icon for ...
- Step - Step 3. Choose the Internet Protocol (TCP/IP) icon from the Network Protocol list box, the...
- Step - Step 4. Check to see if Internet Protocol (TCP/IP) is listed under Network Components.
- Heading2 - 3.7 Configuring TCP/IP in Windows® 2000
- 1Step - Step 1. From the General tab in the Local Area Connection Properties window, select Inter...
- 1Step - Step 1. Click Use the following IP Address and then type the IP Address, Subnet Mask, and...
- Step - Step 2. Enter the Preferred and Alternate DNS server IP addresses.
- Step - Step 3. Click OK to exit the Internet Protocol (TCP/IP) Properties window. Proceed to Chap...
- Heading2 - 3.8 Detecting TCP/IP in Windows® NT 4.0
- Heading2 - 3.9 Installing TCP/IP in Windows® NT 4.0
- Heading2 - 3.10 Configuring TCP/IP in Windows® NT 4.0
- 1Step - Step 1. From the Protocols tab, select TCP/IP (for Ethernet adapters) listed under Networ...
- Step - Step 2. Select the IP Address tab.
- Step - Step 1. Click Obtain an IP Address from DHCP Server.
- Step - Step 2. OPTIONAL* Click the DNS tab and select Disable DNS. If you previously entered any ...
- Step - Step 3. Click OK to exit Network Properties window. Proceed to Chapter 4 “NetDSL Manager.”
- Step - Step 1. To enable static addressing, click Specify an IP Address and then type the IP Addr...
- Step - Step 2. Click the DNS tab. Enter the Host name, Domain name, and DNS Service Search Order ...
- Step - Step 3. Click OK to exit Network Properties window. Proceed to Chapter 4 “NetDSL Manager.”
- Heading2 - 3.11 Installing the Software Drivers
- 1Step - Step 1. After your PC detects an USB connection, a message window appears to indicate tha...
- 1Figure - Figure 3.1 USB Installation Step 1
- Figure - Figure 3.2 USB Installation Step 2
- Figure - Figure 3.3 USB Installation Step 3
- Figure - Figure 3.4 USB Installation Step 4
- Figure - Figure 3.5 USB Installation Step 6
- Figure - Figure 3.6 USB Installation Step 7
- Heading1 - NetDSL Manager
- Heading2 - 4.1 Installing the NetDSL Software
- 1Step - Step 1. Start Windows® 95/98 or Windows® NT 4.0.
- Step - Step 2. Insert the included ARESCOM CD into your CD-ROM drive
- Step - Step 3. Click Start, then choose Run.
- Step - Step 4. Click the Browse button, and look in your CD-ROM drive.
- Step - Step 5. Select the ARESCOM folder, and then the NetDSL Manager folder.
- Step - Step 6. Select the setup.exe file and click the Open button.
- Step - Step 7. Click the OK button.
- Heading2 - 4.2 Launching the NetDSL Manager
- StepNumOnly - 1. Multiple Routers/Bridges Selection— provides the number of and basic information...
- StepNumOnly - 2. NetDSL Manager— is the main software that allows you to configure, maintain and ...
- 1Figure - Figure 4.1 Multiple Routers/Bridges Selection
- Figure - Figure 4.2 Subnet window
- Figure - Figure 4.3 NetDSL Manager
- 1TableTitle - Table4.1 Keyboard Keys to Activate NetDSL Features
- Heading2 - 4.1 Installing the NetDSL Software
- Heading1 - Configuration
- Heading1 - Status Feature
- Heading1 - Tools Feature
- Heading1 - Troubleshooting
- Heading1 - About
- Heading1 - Configuration
- Heading1 - Parameters
- Heading1 - Ethernet

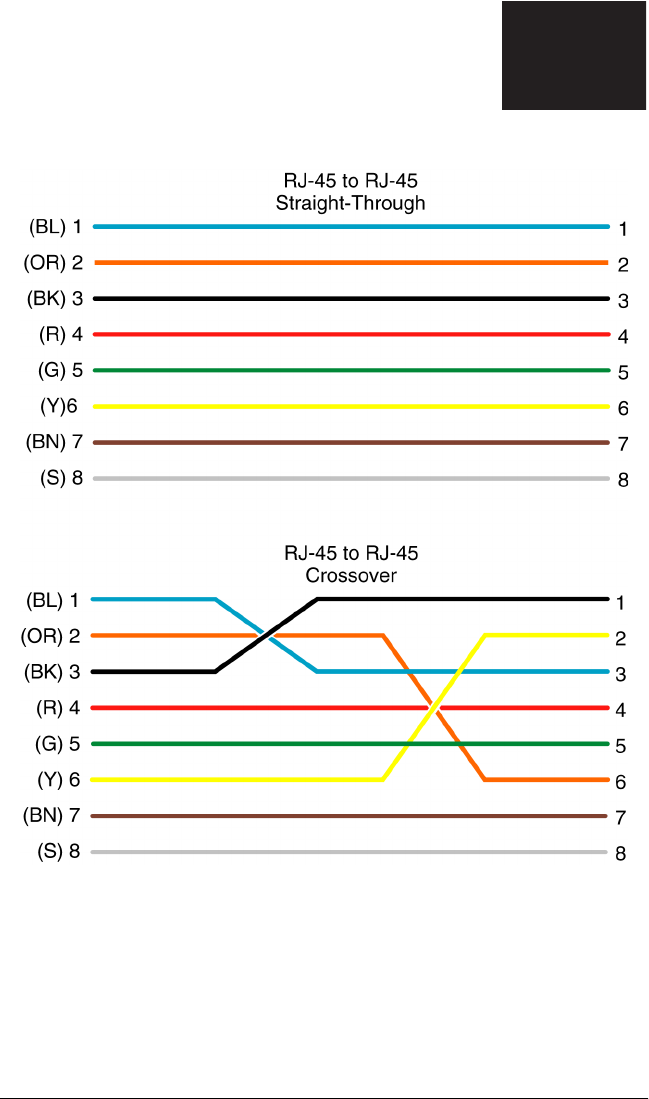

- Heading1 - Cable Pinout
- Heading1 - Warranty
- Heading1 - Information
- Heading1 - Declaration of Conformity
