24 Hardware Information
ECS-8582-4S ADLINK Technology, Inc.
User’s Manual Copyright 2008

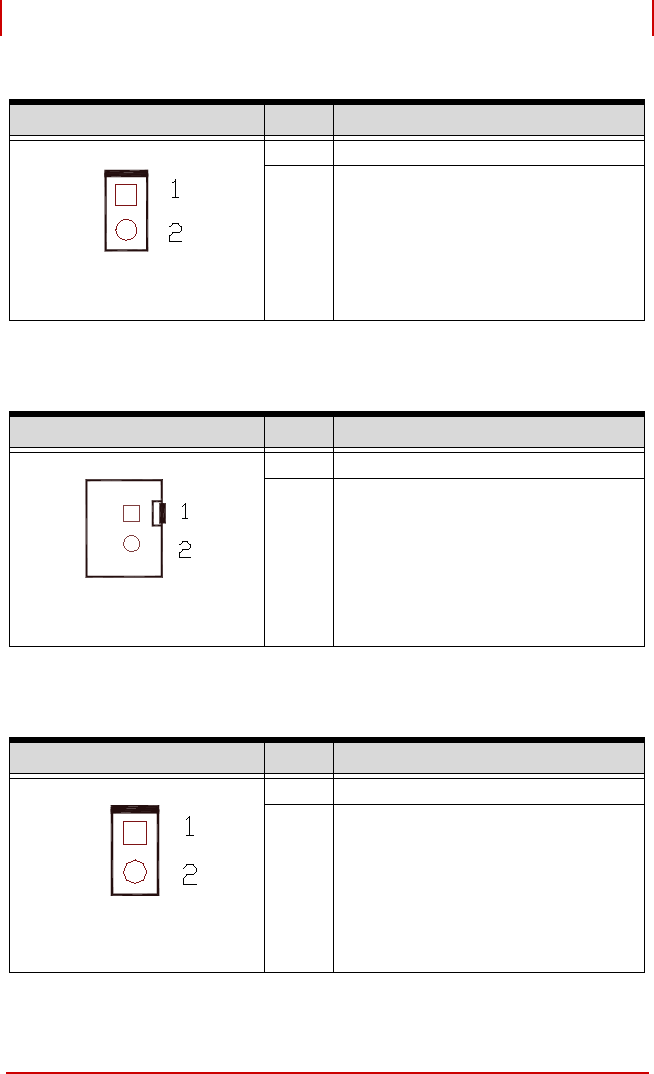

Table 3-9: BP-8005 JP1 LED Connector
Table 3-10: BP-8005 JP2 ATX Power Enable Connector
Table 3-11: BP-8005 JP3 Fan Connector
Pin # Assignment
1 Ground
2 LED Power, +5 V
Pin # Assignment
1 Ground
2 PWR-ON, ATX Power Enable
Pin # Assignment
1 Ground
2 +12 V
JP1
JP2
JP3
