Hardware Information 17
ADLINK Technology, Inc. ECS-8582-4S
Copyright 2008 User’s Manual
3.3 PCI-8565 Layout, Connectors and Jumpers

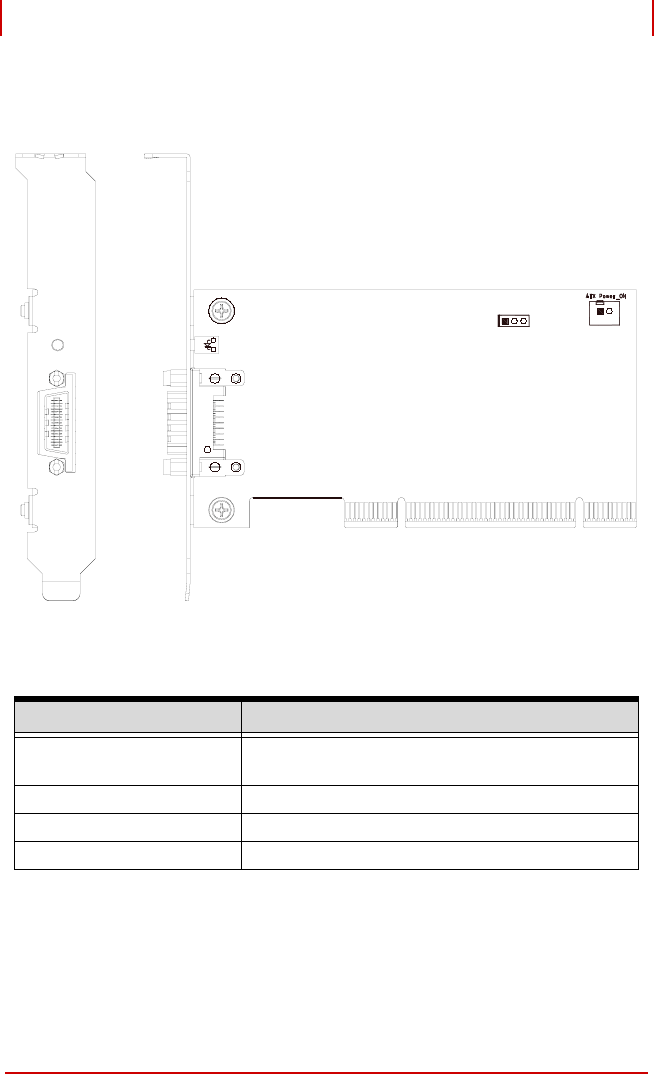

Figure 3-3:
D1
JP2
JP1
CN1
PCI-8565 Mechanical Layout
Connector/Jumper/LED Description
JP1
ATX power enabling connector. This connector
is used for remote power-on control.
JP2 Spread spectrum clock control
CN1 PCI Express serial link connector
D1 Serial Link Status LED
Table 3-1: PCI-8565 Connectors, Jumpers and LED
