16 Hardware Information
ECS-8582-4S ADLINK Technology, Inc.
User’s Manual Copyright 2008
3.2 EC-8560
The EC-8560 is an ExpressCard/34 form factor module that re-
drives PCI Express signals to an extension chassis via the ACL-
EXPRESS cable. Users can plug EC-8560 into an ExpressCard/
34 or ExpressCard/54 slot equipped laptop computers.

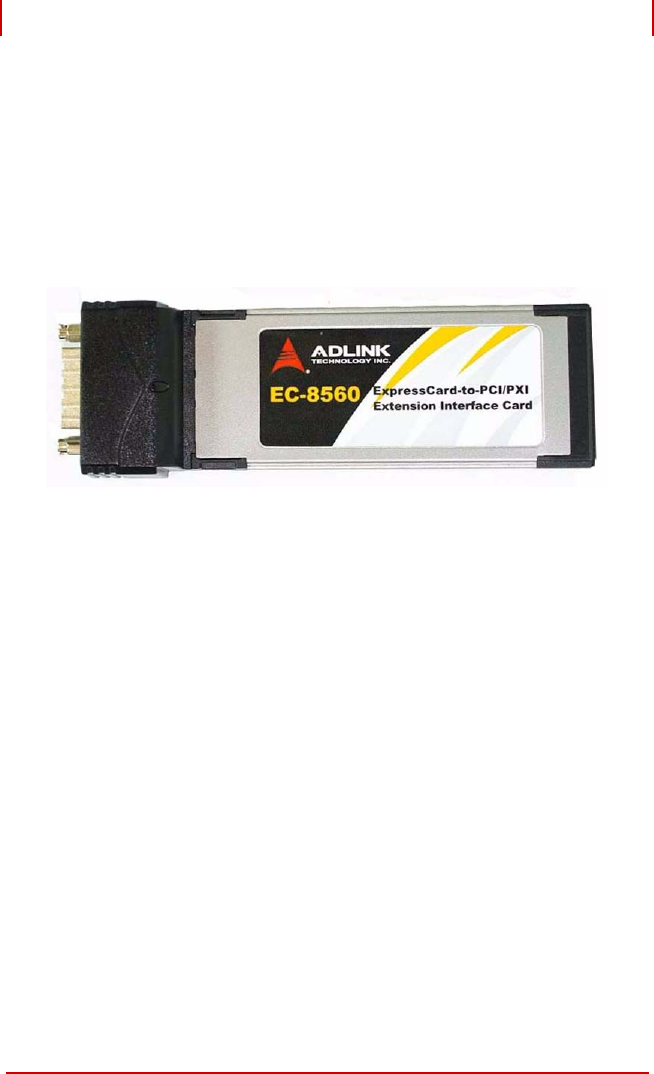

Figure 3-2: EC-8560 Product Image
