User Manual
Table Of Contents
- 一、Overview
- 二、Thanks and Commitment
- 三、What is 3D Printer?
- 四、Printing
- 4.1ADIMLab-gantryArchitecture：
- 4.2Assembly and wiring
- （Please reference SD card file contents“2.Assembly and debugging tutorial”“HCmaker7Assembly instruction”1~2）
- 4.3 First time test the maker7
- （Please reference SD card file contents“2.Assembly and debugging”“HCmaker7Assembly instruction”3）
- 4.3.1 Home test：
- 4.3.2Heating test：
- 4.4First time prepare printing:
- （Please reference SD card file contents“2.Assembly and debugging”“HCmaker7Assembly instruction”4）
- 4.4.1XaxisHeight calibration：
- 4.4.2Leveling Heating Platform：
- 4.4.3 First time test the maker7：
- （Please reference SD card file contents“2.Assembly and debugging”“HCmaker7Assembly instruction”5）
- (1)“Info screen” Press the knob，Rotate select“Print from SD”,Click OK：
- 五、Slice software installation and configuration
- 9 Support and service
13
4.4First time prepare printing:
（Please reference SD card file contents“2.Assembly and debugging”
“HCmaker7Assembly instruction”4）
4.4.1XaxisHeight calibration：

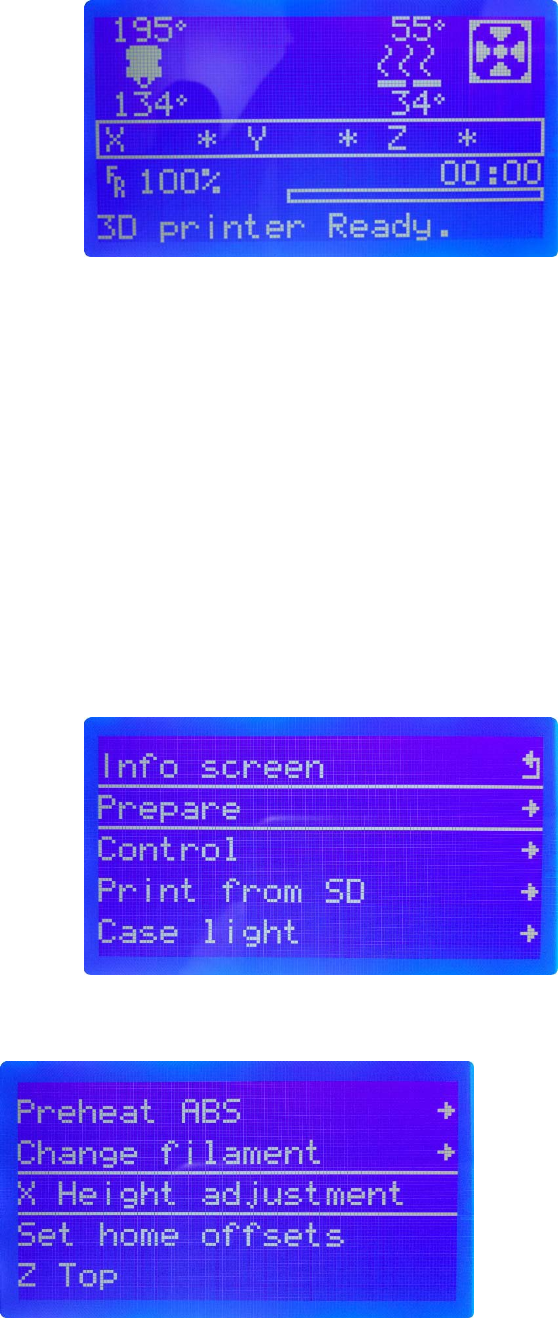

(1)“Info screen”Press the knob，Rotate select“Prepare”,Click
OK：
(2) Select“X Height adjustment”in Submenu，Click OK:
(3) Z axis Automatic rise30mm，use solid glue or print model
