- Mercury Hub User Guide
Table Of Contents
- Mercury Hub
- User Guide
- PR0018 (Mains Powered)
- PR0017 (Mercury Controller Powered)
- T
- THE MERCURY HUB 3
- Description 3
- Front View 3
- Rear View 3
- Top View 4
- Connection to Mercury Controllers: 4
- RS232 Lead Lengths 4
- Connection to other IP equipment 4
- Connection to another Mercury Hub or Other Ethernet Hub/swit
- Connection to a Data Manager/Director 4
- 10 Base T connectors 5
- Network ID 5
- ID for equipment with rotary switch’s. 5
- SPECIFICATION 6
- Power requirements: 6
- Mounting 6
- RS232 Cable Lengths 6
- Ethernet Cable lengths 6
- The Mercury Hub
- From Resource Data Management
- The Mercury Hub is a device that allows up to 10 RDM control
- Using a standard CAT5 patch lead, connect the serial output
- For mains powered hubs, patch lead maximum length must not e
- For Mercury powered hubs, inputs 1 and 2 patch leads must no
- The 3-character address that will be seen on the system fron
- Use a standard CAT5 patch lead to connect other IP equipment
- Use a standard CAT5 patch lead from the Uplink port into a s
- Use a standard CAT5 patch lead and connect the Data Manager
- The three 10Base T connectors have 2 leds on them: The green
- The amber LED indicates there is an error or fault on that c
- The 3-character network ID is made up from the positions of
- E.g. Bay 10 case 2:
- The 2 rotary switches set to "1" and "0", controller plugged
- Note that case number 10 would plug into RS232 port 0 (right
- For RDM products that use the 3 rotary switch’s for the netw
- Specification
- Supply Voltage Range: 100 - 240 Vac ±10% (Mains version)
- Supply Frequency: 50 - 60 Hz (Mains version)
- OR 2 x Mercury Controllers connected to ports 1 and 2
- Maximum supply current: 500 mAmps
- Typical supply current: <100 mAmps
- Operating temperature range: +50C to +500C
- Operating Humidity: 80% maximum
- Storage temperature range: -200C to +650C
- Environmental: Indoor use at altitudes up to 2000m, Pollut
- Installation Category II.
- Voltage fluctuations not to exceed ±10% of nominal voltage
- Size: 300mm (L) x 35mm (H) x 110mm (W)
- Weight: 300 Grams
- Safety: EN61010
- EMC: EN61326; 1997 +Amdt. A1; 1998
- Ventilation: There is no requirement for forced cooling ve
- Class 2 Insulation: No protective Earth is required and non
- The host equipment must provide a suitable external over-cur
- Fuse: 1A 240 Vac Antisurge (T) HRC conforming to IEC 6012
- Or MCB: 1A, 240 VAC Type C conforming to BS EN 60898
- There is a fixing lug at each end of the Hub, with hole cent
- Port number
- Main Powered Hub
- Mercury Powered Hub
- 1
- 15 metres
- 5 metres
- 2
- 15 metres
- 5 metres
- 3
- 15 metres
- 15 metres
- 4
- 15 metres
- 15 metres
- 5
- 15 metres
- 15 metres
- 6
- 15 metres
- 15 metres
- 7
- 15 metres
- 15 metres
- 8
- 15 metres
- 15 metres
- 9
- 15 metres
- 15 metres
- 0
- 15 metres
- 15 metres
- Port number
- Main Powered Hub
- Mercury Powered Hub
- 1
- Refer to Cat5 standard
- Refer to Cat5 standard
- 2
- Refer to Cat5 standard
- Refer to Cat5 standard
- Uplink
- Refer to Cat5 standard
- Refer to Cat5 standard
Mercury 6-5 M/E Installation guide
Mercury Hub User Guide

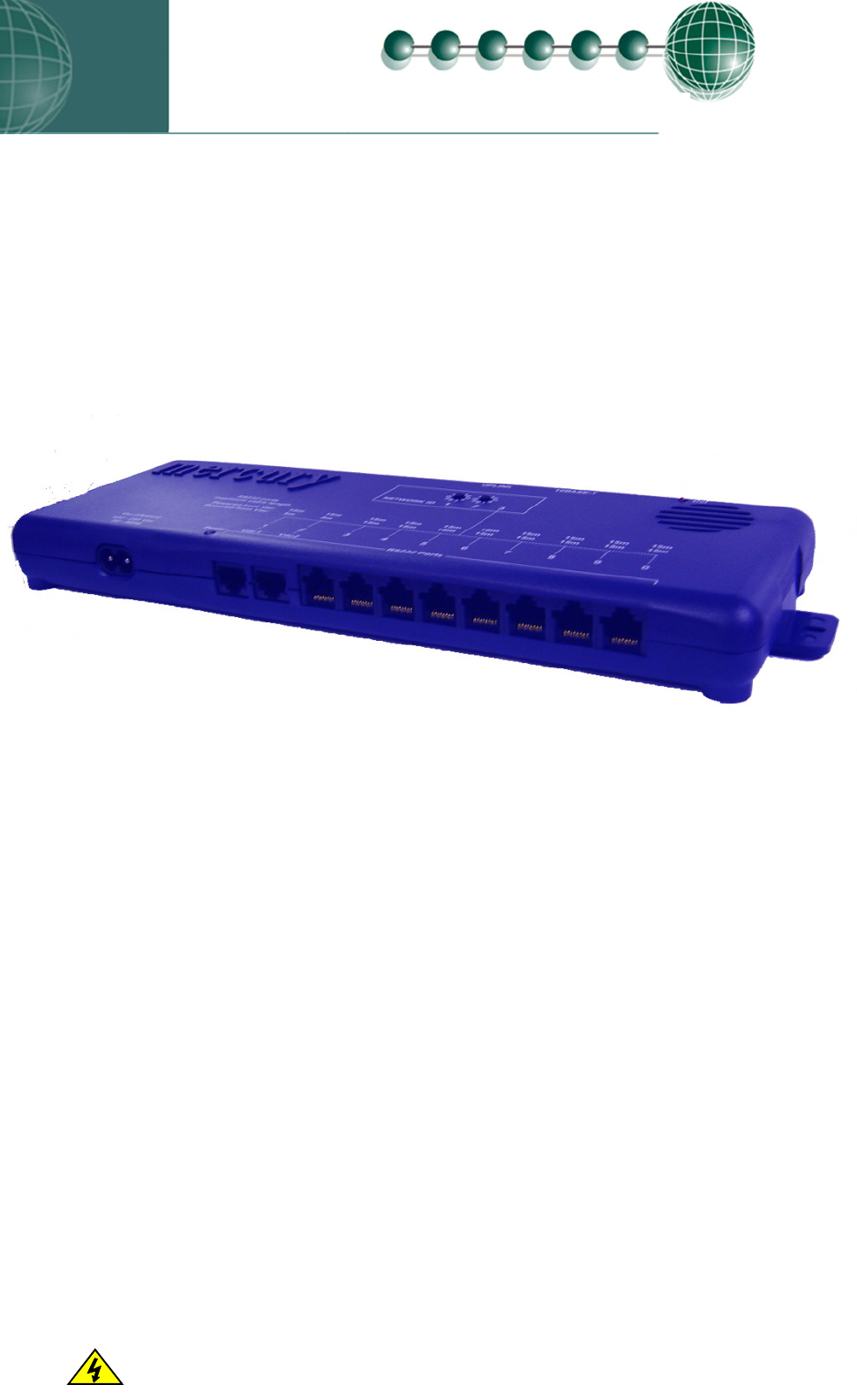

Mercury Hub
User Guide
PR0018 (Mains Powered)
PR0017 (Mercury Controller Powered)
Ensure that all power is
switched off before
installing or maintaining
this product
Revision 1.5 Page 1 of 6
