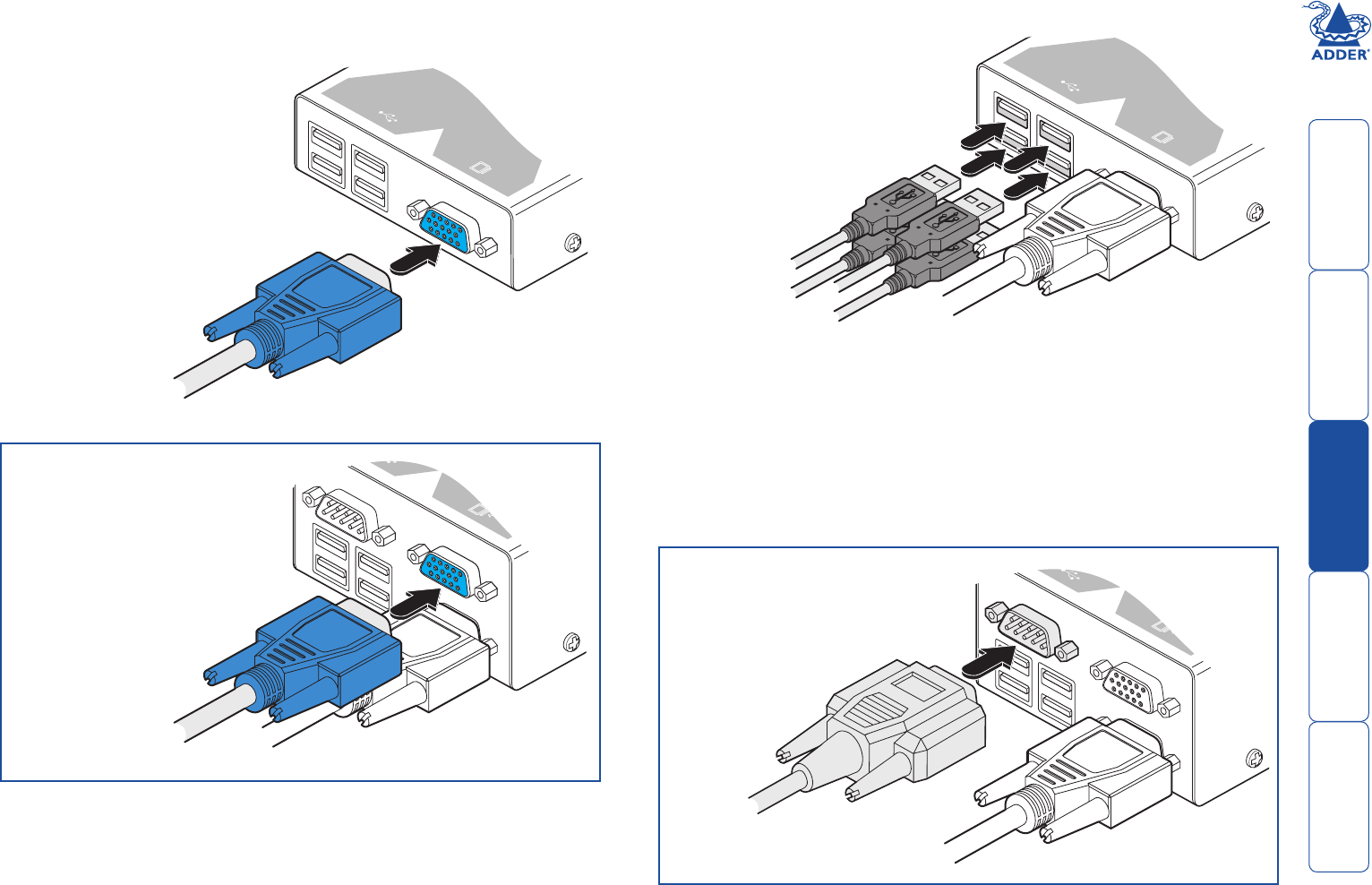

Connections at the remote module
1 Place the remote module adjacent to the user location.
3 Attach the leads of up to four
USB devices (two of which are
usually a keyboard and mouse)
to the sockets located adjacent
to the video output connector.
To video
monitor
4 [MS2 variant only] Optionally attach
a serial device lead to the male
serial connector on the remote
module.
REMOTE
ADD
2 Attach the lead from the video
monitor to the video out socket
on the remote module.
[MS2 variant only] Optionally
attach the lead from a second
video monitor to the upper video
out socket on the MS2 remote
module.
To secondary
video monitor
REMOTE
ADD
To USB devices,
e.g. keyboard,
mouse, etc.
To RS232
serial device
See the Important note on page 5
[MS2 variant only] Note: When connecting four USB devices to the unit,
ensure that their total power requirements do not exceed 1700mA (1.7A).
The USB standard states a maximum allowable current draw of 500mA
(0.5A) per device, although most devices remain well below this limit - USB
keyboards and mice typically require 100mA. Each X50 contains a self-
resetting fuse that will prevent damage by shutting down the unit if the
total power draw becomes excessive.
