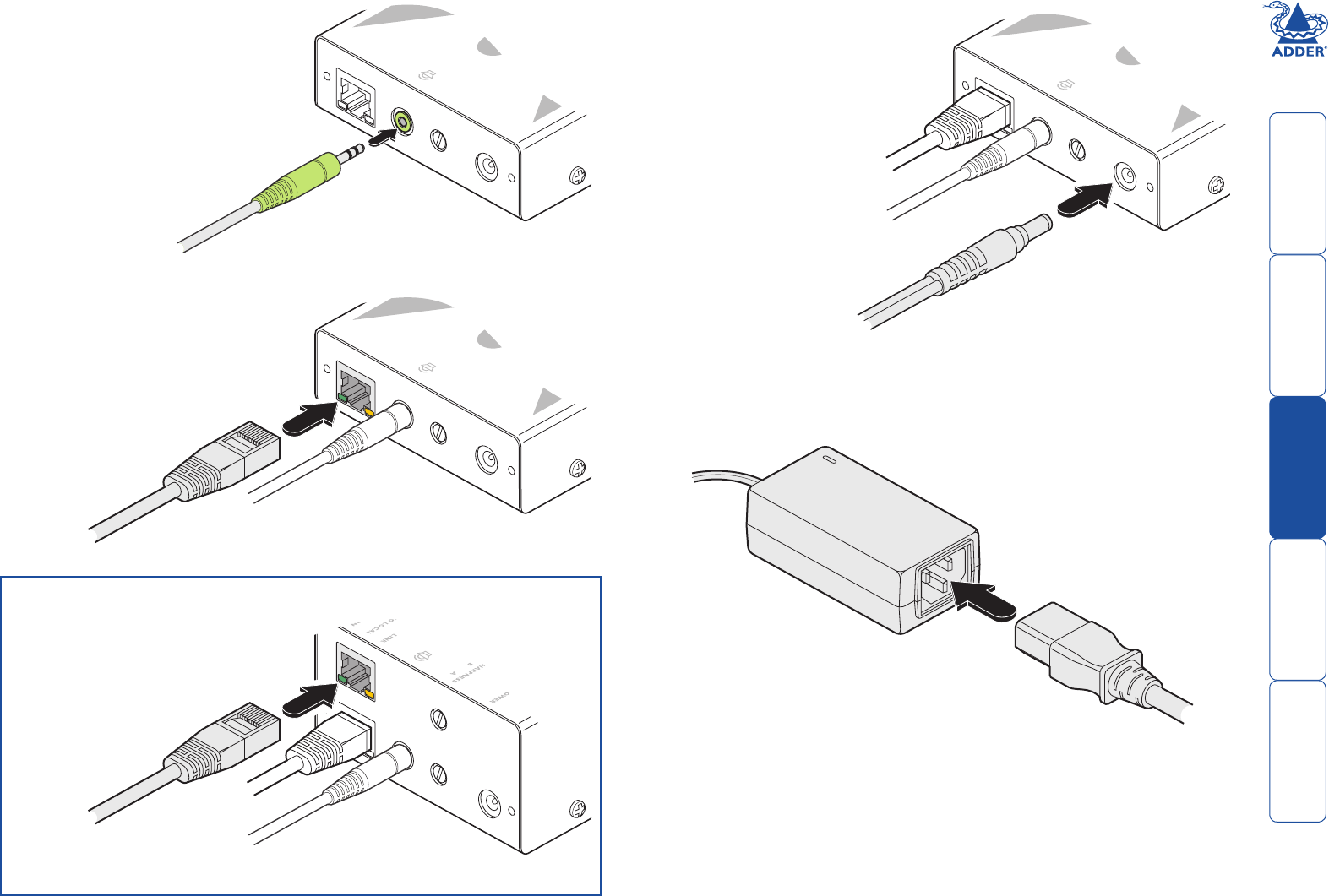

5 Optionally attach the lead from
your stereo speakers to the audio
output socket on the remote
module.
POWE R
SH AR PN ES S
LI NK
TO L OC AL
ON
6 Attach the connector of the
category 5, 5e or 6 link cable
(up to 50 metres in length) to
the ‘TO LOCAL’ socket on the
remote module (labelled ‘LINK
1’ on MS2 variants).
POWE R
SH AR PN ES S
LI NK
TO L OC AL
ON
[MS2 variant only] Attach the
connector of a second category
5, 5e or 6 link cable (up to 50
metres in length) to the ‘LINK
2’ socket on the MS2 remote
module.
7 attach the output connector
of the power supply to the
‘POWER’ socket of the remote
module.
To speakers
Link to remote
module
Secondary
link to
remote
module
POWE R
SH AR PN ES S
LI NK
TO L OC AL
ON
To power
supply
8 Attach the IEC power lead to the power supply body and insert the mains
plug of the lead to a nearby power outlet.
To mains
outlet
