Cuda 12000 IP Access Switch Installation Guide
Cabling for Fault Reporting 147

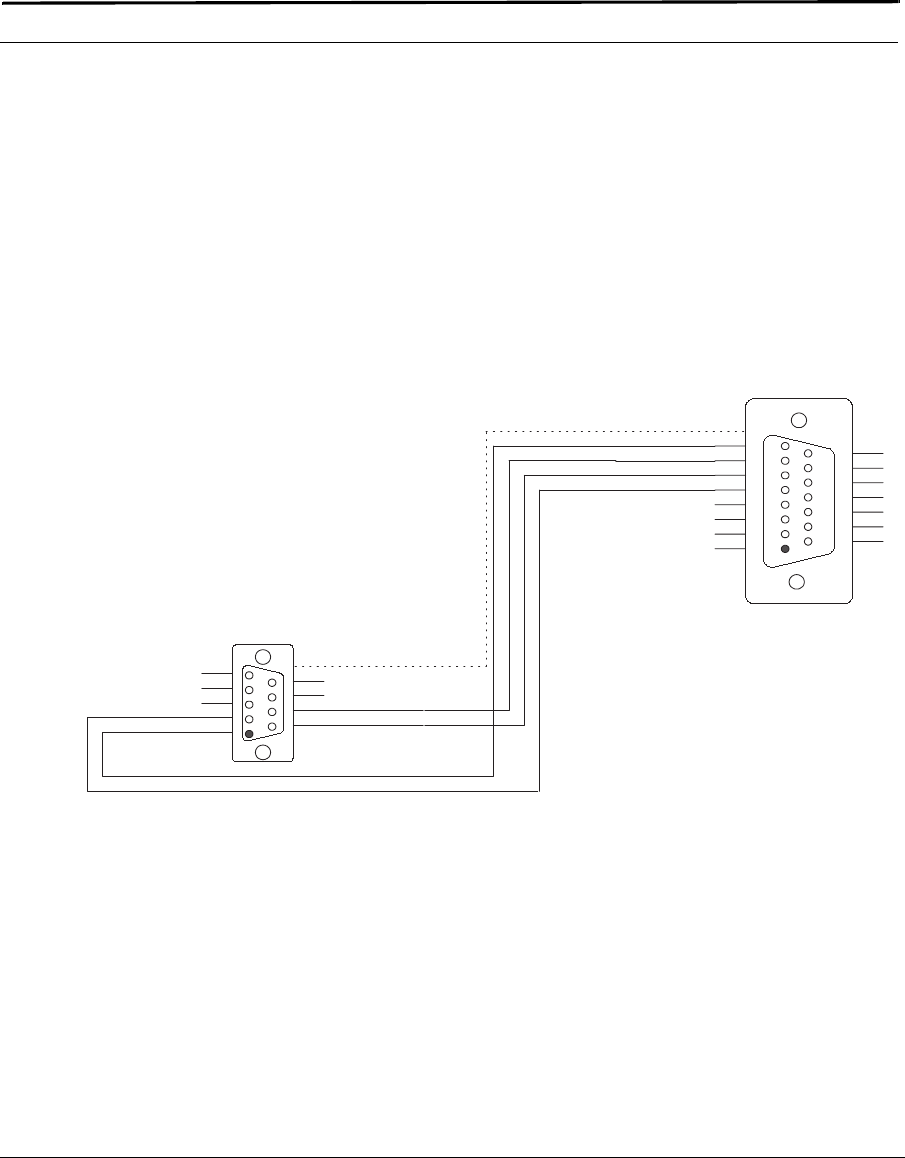

Cabling for Fault Reporting
2-Way Cable for Cuda 12000 and Fan Tray
1
5
4
3
2
9
8
7
6
DB-9 Male
1
5
4
3
2
9
8
7
6
10
11
12
15
13
14
Connects to Fan Tray
Connects to Cuda 12000
DB-15 Male
Power/Fan Rear Connector
FAN_RT_FLT
FANS_RETURN
FAN_INL_FLT
FANS_ON
FANS_ON
FAN_RT_FLT
FAN_RETURN
FAN_INL_FLT
NOTES:
1. ALL UNUSED PINS ARE RESERVED. MAKE NO CONNECTIONS TO THEM.
2. CABLE WIRES ARE #24 GUAGE, SHIELDED.
3. CABLE SHIELDS ARE CONNECTED TO THE DB CONNECTOR SHELLS USING THE
DRAIN WIRE.
SHIELD
4. CABLE LENGTH FOR THE DB9 TO DB15 SECTION IS 3 FEET.
5. APPLY A LABEL WITH THE ADC PART NUMBER 580-000016-00 REV 001 TO THE 3
FOOT SECTION. LABEL SHOULD BE ONE FOOT FROM THE DB 15 END OF THIS
SECTION.
6. DB9 AND DB15 CONNECTORS MUST HAVE METALLIC EMI COVERS.
