Set Up the Campus-REX System
Campus-REX RS Interface Card User Manual 3-3

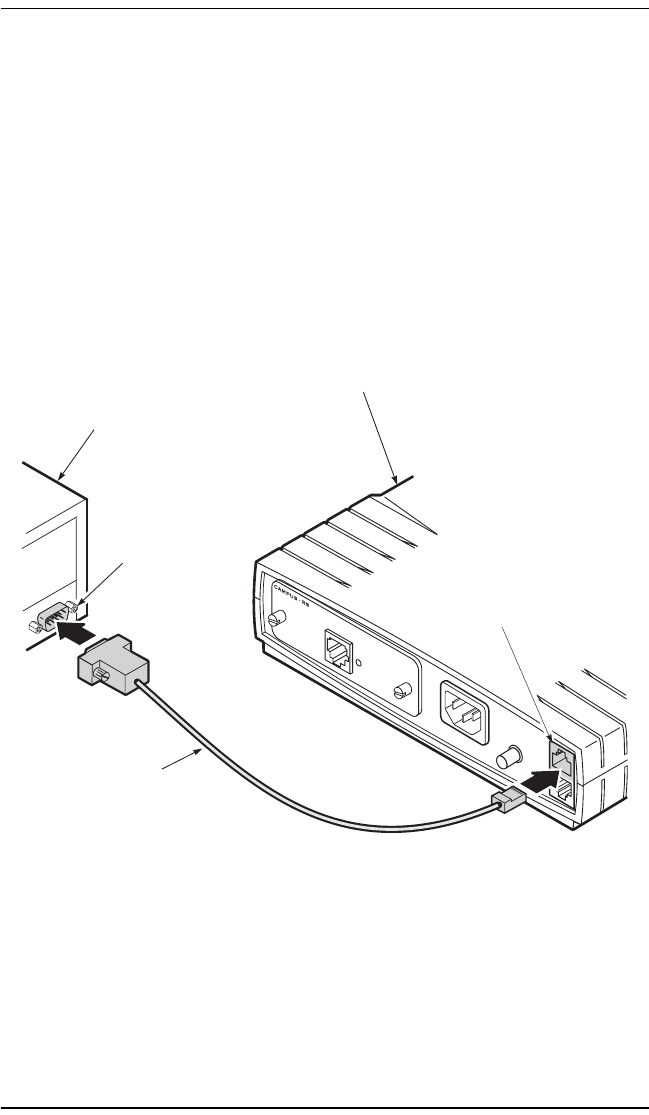

Connecting the ASCII Terminal to the Campus Unit
To connect the Campus-REX RS Interface Card to an ASCII terminal:
1 Plug the console adapter into the standard 9-pin COM port on the ASCII
terminal and tighten the attached screws until they are snug. Skip this
step if the ASCII terminal provides an RJ-48 jack.
2 Plug one end of the console cable into the console adapter, then do one
of the following:
• Plug the other end of the console cable into the console port on the
Desktop Unit.
ASCII terminal
9-pin COM
port
120 VAC@60Hz
or 220 VAC@50Hz
.2A Max
Campus desktop chassis
Console port
Cable
10BaseT
E
T
H
E
R
N
E
T
B
R
I
D
G
E
LINK
