Installing the Campus-REX RS Interface Card
2-6 Campus-REX RS Interface Card User Manual
Connecting the Cable
To connect the 10BASE-T cable to the Campus-REX RS Interface Card:
1 Plug one end of the Category 3 cable into the 10BASE-T MDI connector
on the rear of the Campus-REX.
2 Connect the other end of the cable to your local equipment (repeater, PC,
or other 802.3 device).
120 VAC@60Hz
or 220 VAC@50Hz
.2A Max
C
F
G
6
3
1
ETHERNET BRIDGE
10BaseT
LIN
K

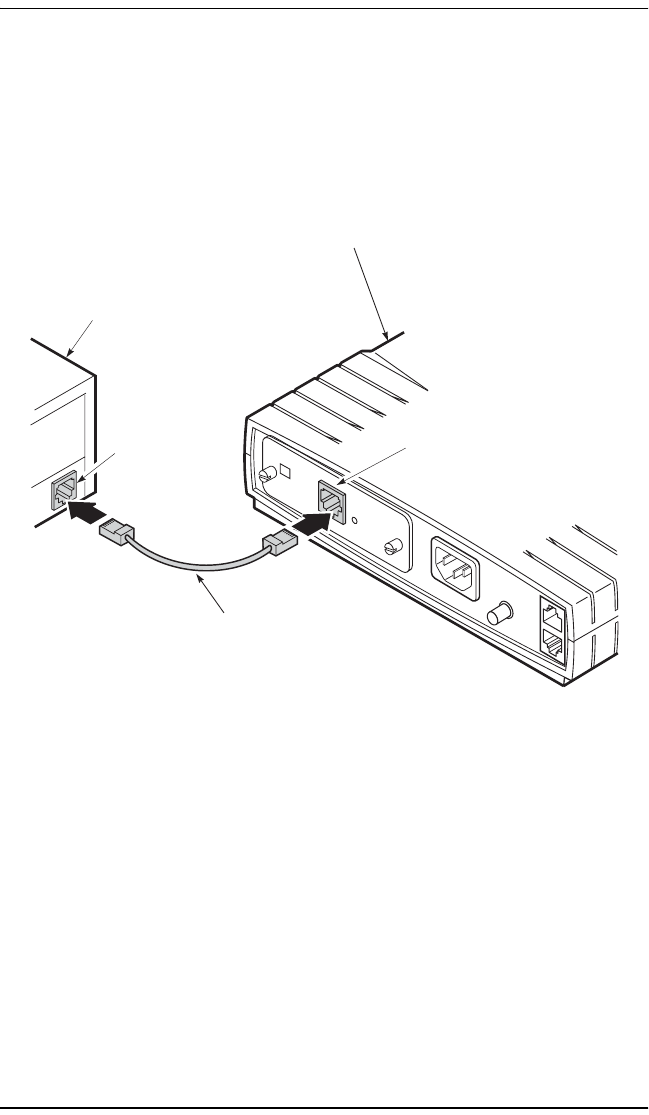

Campus-RS Desktop Unit chassis
10BASE-T MDI port
Category 3 cable
Local equipment
(Ethernet)
10BASE-T port
