Installing the Campus-REX RS Interface Card
Campus-REX RS Interface Card User Manual 2-3
Installing into a Campus-Star Chassis
This section describes how to install the Campus-REX in a Campus-Star
chassis.

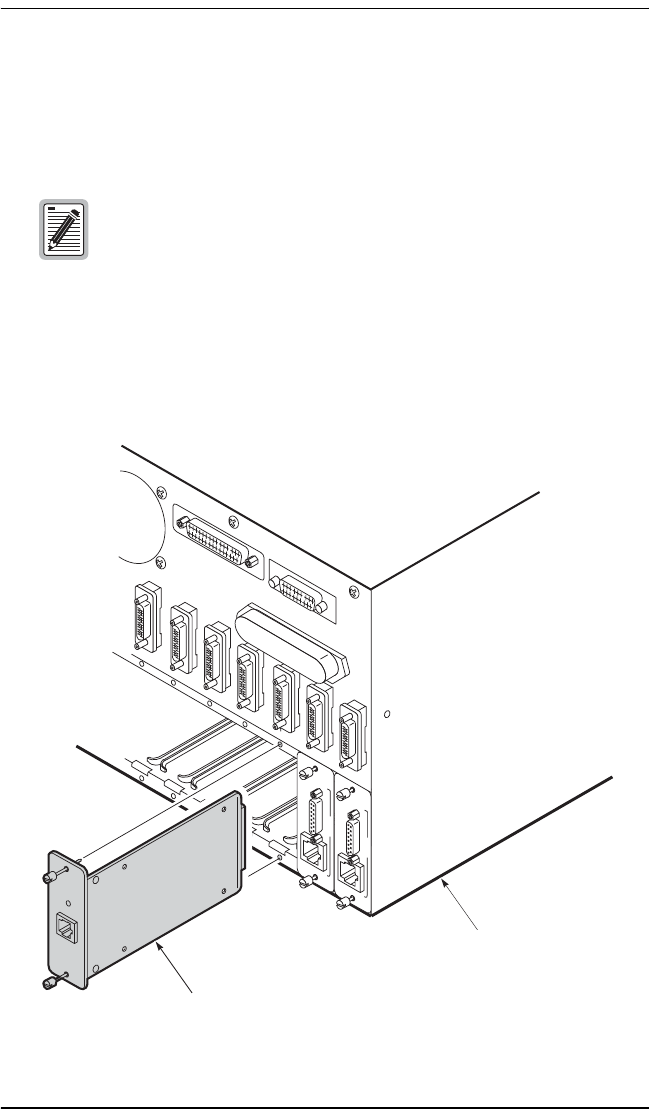

1 Slide the card into the guide rails in the desired slot on the rear of the
Campus-Star chassis.
Before installing the Campus-REX, make sure there is not a
Line Unit installed in the corresponding slot on the front of the
Campus-Star chassis. The Campus-REX is not
hot-swappable. Installing the Campus-REX with a
corresponding Line Unit installed may cause damage to the
Campus-REX, the Line Unit, or both.
620
D
S
X
-1/T
C
FG
DSX-1
620
D
S
X-1/T
C
F
G
DSX-1
Campus-REX RS Interface card
Campus-Star
chassis
C
FG
