About the Product
1-8 Campus-REX RS Interface Card User Manual
LAN Extension in a Routed Environment

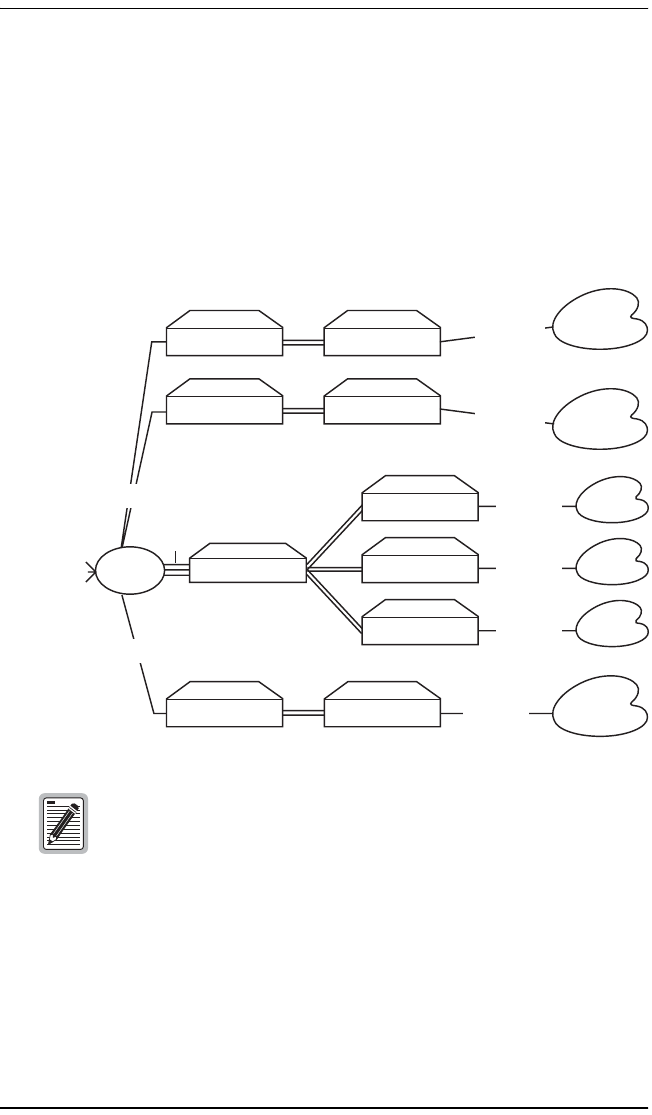

The Campus-REX, set for bridging over PPP, can extend LAN access to a
centralized router. This application, as shown in the following figure, requires
two settings for the remote Campus-REX units:
• set the Bridge/Router mode to Bridge
• set the Encapsulation to PPP
In this application, the router ports must be configured for
bridging with PPP encapsulation.
Campus-RS Campus-REX
Campus-REX
Campus-REX
Campus-REX
Campus-REX
Campus-REX
Campus-RS
LAN
LAN
LAN
LAN
LAN
LAN
Campus-Star
Campus-T1
10BASE-T
10BASE-T
10BASE-T
10BASE-T
10BASE-T
10BASE-T
V.35
External
network
connections
V.35
V.35
Router
