Internetworking and Management Overview
7-8 Campus-REX RS Interface Card User Manual
parties from eavesdropping to discover routes to remote sites connected
through the HDSL line. The format of this entry varies among different router
vendors, but it will typically be in the form of Destination, Mask, and Next
Hop Gateway, where:
• destination is the remote IP subnet or host address
• gateway is the LAN IP address of the Campus-REX on the same subnet
as the external router

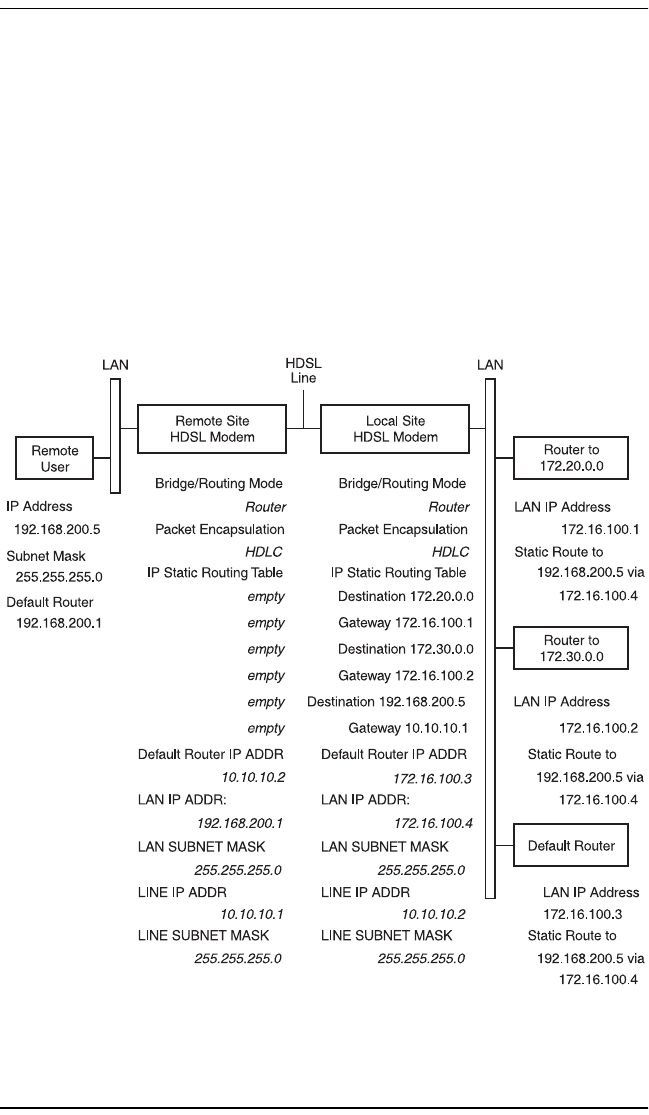

The following figure shows an example of a point-to-point HDSL system
with hypothetical parameter values.
CAD1069i5.book Page 8 Thursday, May 30, 2002 7:32 AM
