DART Remote Unit

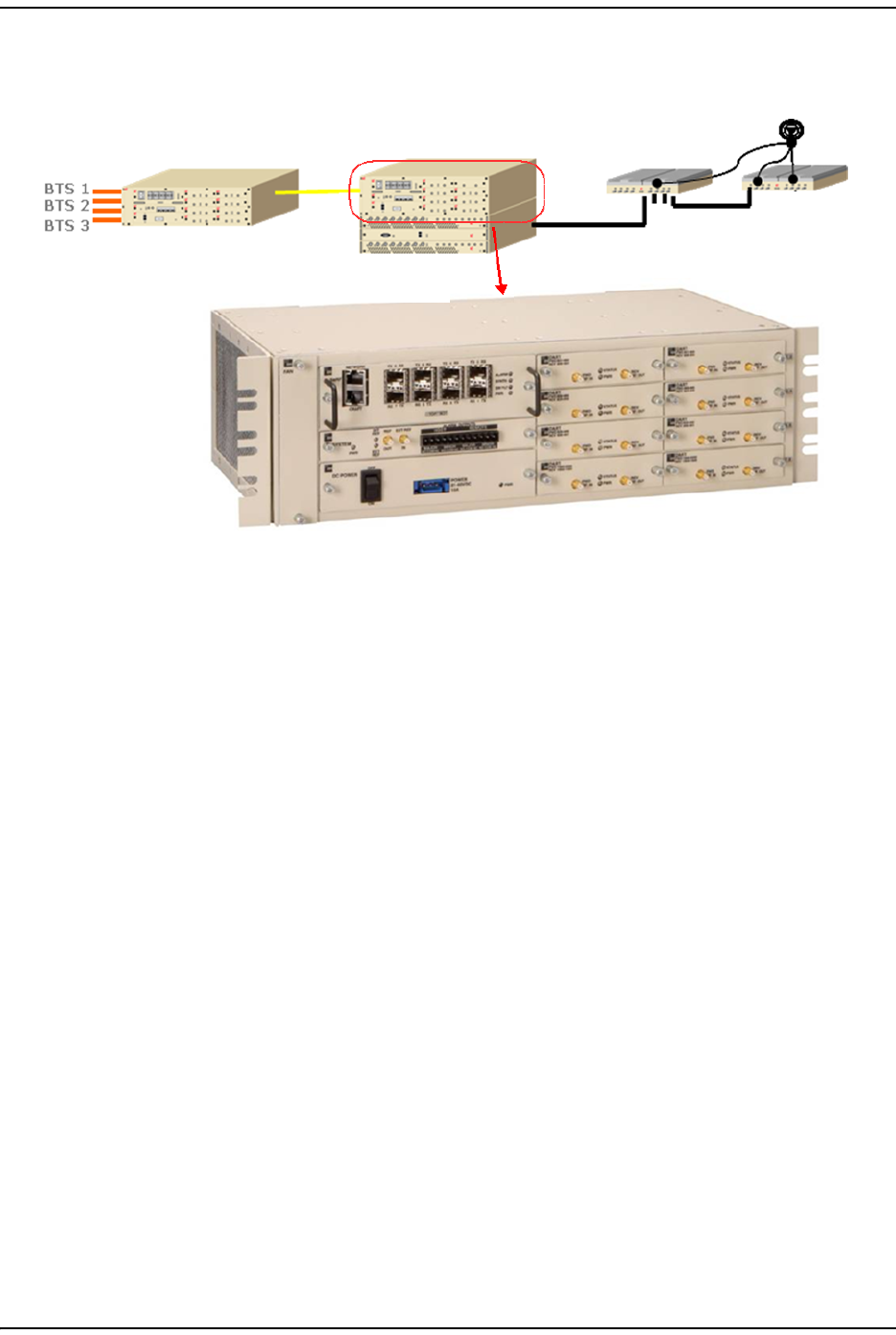

The DART Remote Unit (DRU) is installed into a 19-inch, rack-mounted chassis,
that is 9-inches deep and can have up to eight hot swappable plug in cards. DRU
components are as follows:
• One SeRF board with eight SFP connectors, that go to the Host Unit SFPs
• Two Ethernet connections for Craft and Network access
• One System board with an Alarm connector
• One DCV Power board
• Eight RF DART boards with eight QMA connector IF inputs and eight QMA
connector IF outputs to the IF Expansion Unit (IFEU)
• Replaceable Fans for cooling
