Page 12 FlexWave Prism Remote Unit Installation Guide
©
2009 ADC Telecommunications, Inc ADCP-77-072 • Issue 2 • 11/2009

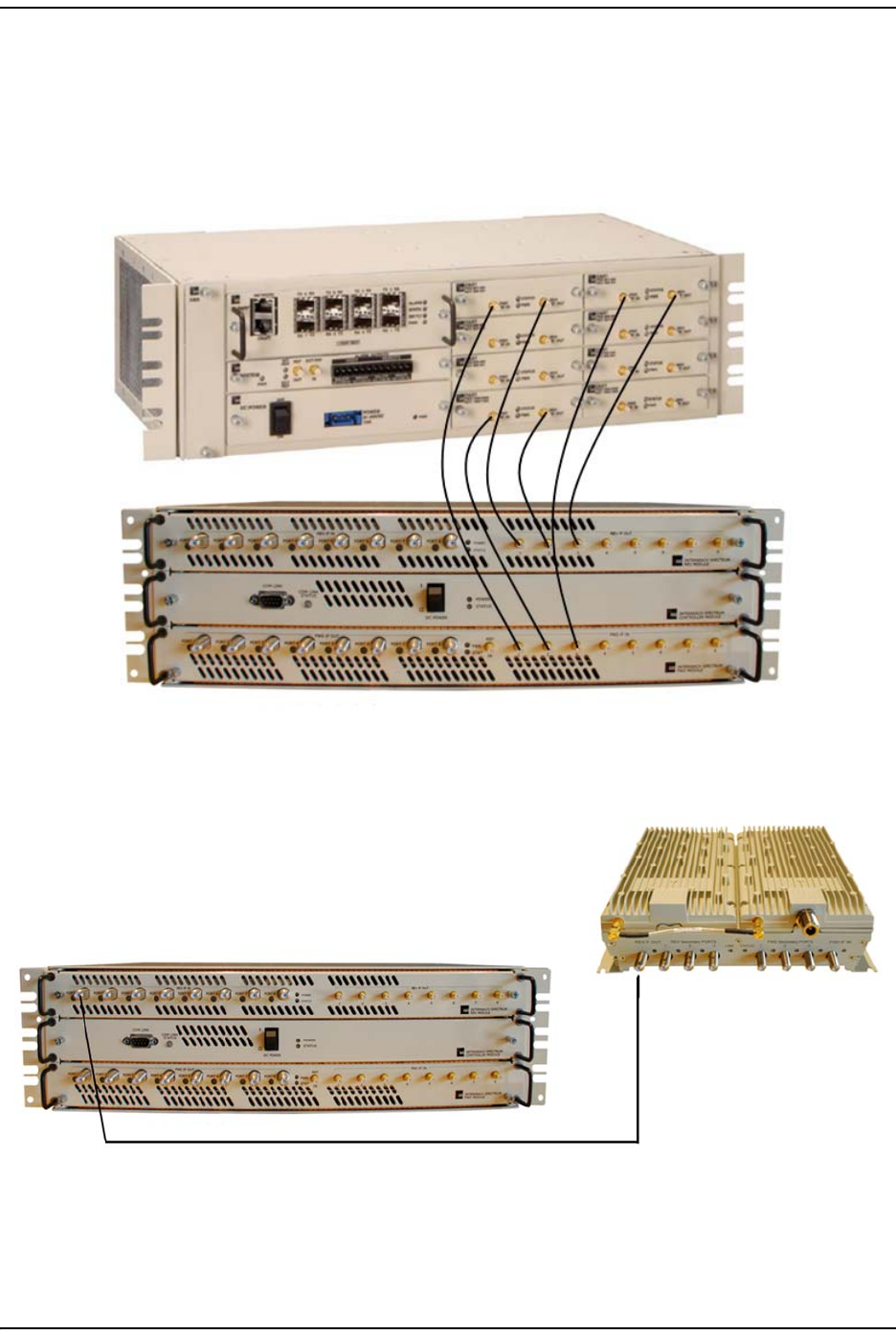

3 Connect IF DART QMA cables to IFEU:
a Connect QMA cable from all IF DART FWD OUT connectors to any IFEU FWD
Module IF IN connector.
b Connect QMA cable from all IF DART REV IN connector to any IFEU REV
Module IF OUT connector.
4 Connect F connector CATV cable from IFEU FWD Module Port IF OUT to MRAU
FWD IF IN F connector.
