FlexWave Prism Remote Unit Installation Guide Page 11
ADCP-77-072 • Issue 2 • 11/2009 © 2009 ADC Telecommunications, Inc.
INSTALLATION
Follow the steps in the order in which they are presented.

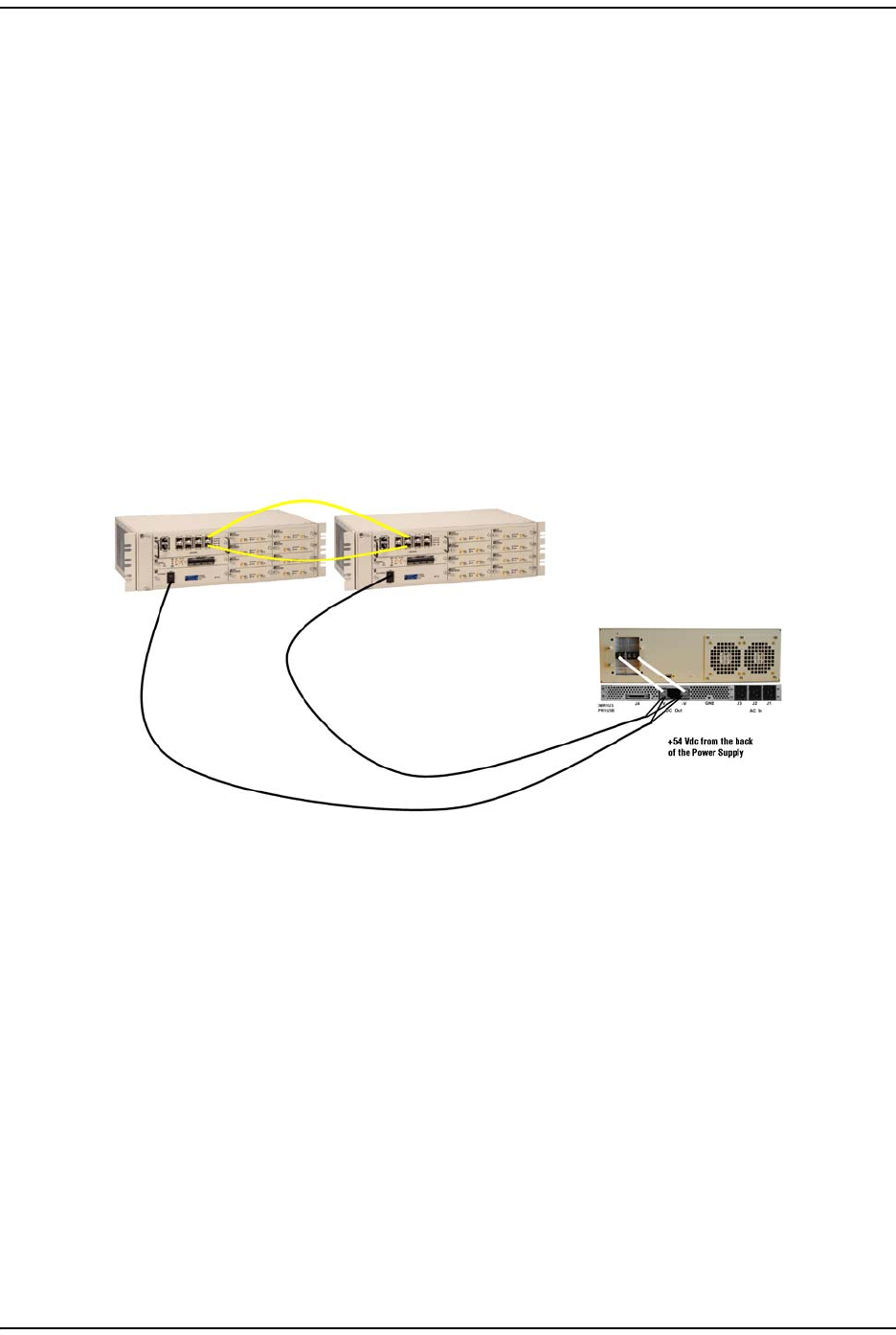

1 Connect the Host single-mode fiber SFPs (1-4) to the DART Remote Unit SFPs
(5-8):
• HU SFP 1 to DRU SFP 5
• HU SFP 2 to DRU SFP 6
• HU SFP 3 to DRU SFP 7
• HU SFP 4 to DRU SFP 8
2 Connect the provided Vdc power cables to the +V and –V power-supply
terminals.
CAUTION! The Power Supply requires 2-20amp 120VAC outlets.
