Element Management System (EMS) 4.0 User Manual

4.4.2 Host RF Window

The host RF (Radio Frequency) window, shown in Figure 62, displays two alarm

indicators for the forward path RF composite signal. The window shows operating

mode, also, because a mode other than normal may cause the indicators to report

falsely. Table 12 describes the RF alarms.

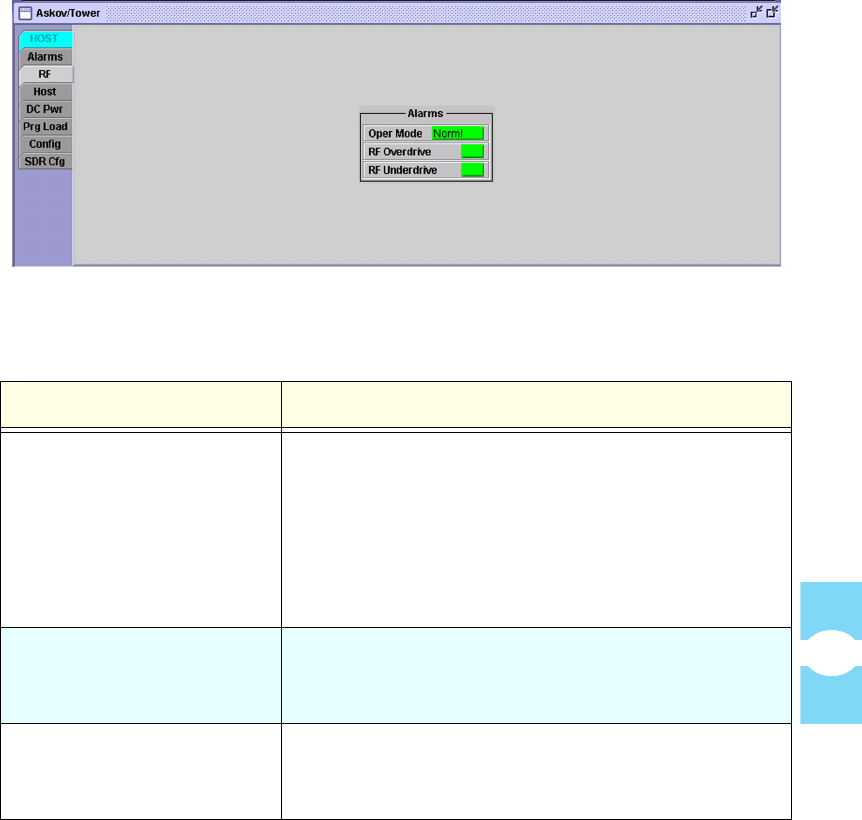

Figure 62. Host RF Window

Table 12: Host RF Alarms When Faulted

ALARM NAME DESCRIPTION

Oper Mode The operating mode is not “Norml.” (“StandBy” mode

will cause a green RF Underdrive indicator to falsely

read as red; a red RF Overdrive indicator will falsely

read as green. “Test” mode will have no effect on the

RF indicators. If mode is “PrgLd,” wait for the load to

complete.) For more information on operating mode,

refer to Topic 4.1.4, Tools Menu, on page 60.

RF Overdrive The forward path composite signal level of all channels

from the server is too high. The overdrive threshold is

−3 dBFSrms. See also Oper Mode above.

RF Underdrive The forward path composite signal level of all channels

from the server is too low. The overdrive threshold is

−25 dBFSrms. See also Oper Mode above.
