Installation Instructions

4
Hardware Installation
ACRS 1.0 is the first generation Adaptrum cognitive radio system covering spectrum bands from
400 MHz to 1 GHz. ACRS 1.0 is specifically designed to operate in the UHF TV Band (470 MHz – 698
MHz), as TV Band Devices compliant to the rules specified in CFR 47 Part 15 Subpart H. To be rules
compliant, ACRS 1.0 systems must operate as Fixed TV Band Devices and must be professionally
installed.

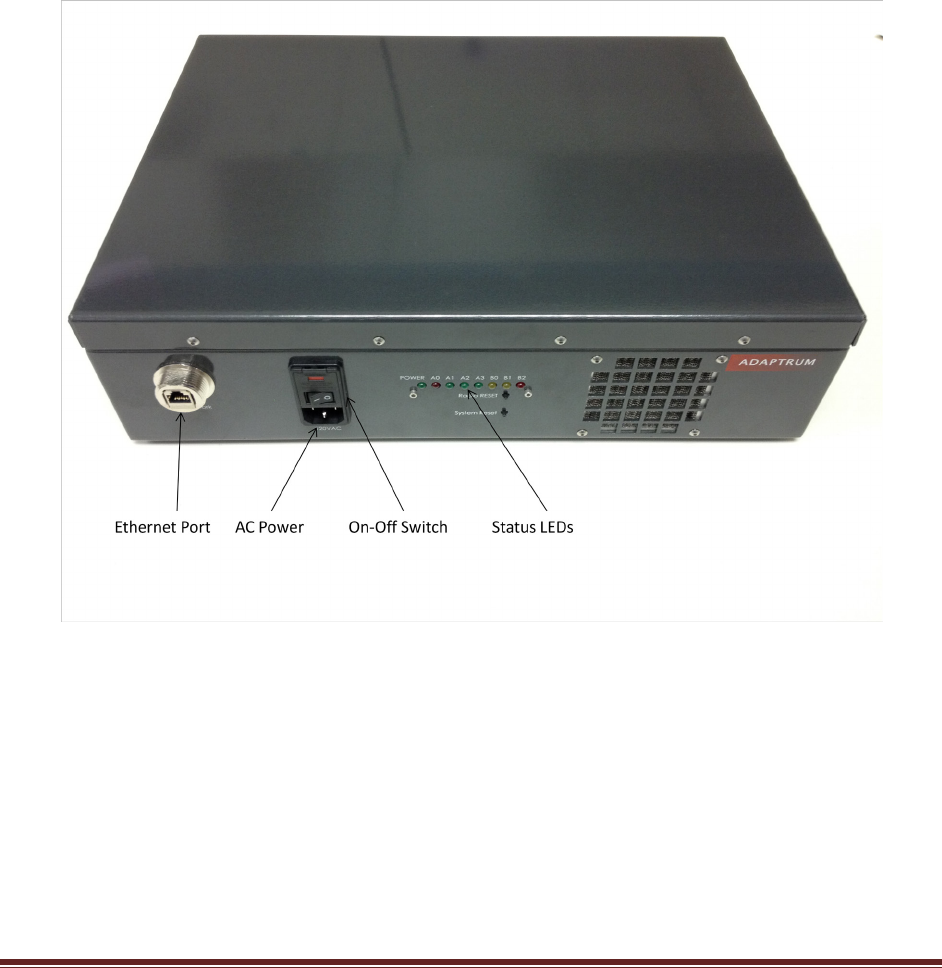

ACRS 1.0 radio unit is enclosed in a 2U size box whose front panel and back panel are shown in
the following pictures. Both the base station and the client station use the same radio unit.
