Specifications

In interleaved systems, memory is currently organized in either two or four
banks. Figure 3 on page 7 shows a two-way interleaved memory
implementation.

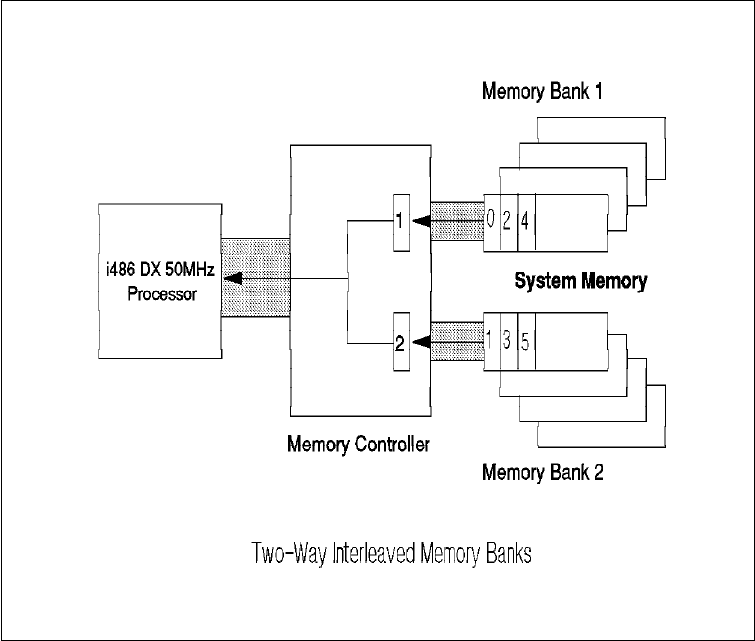

Figure 3. Two-Way Interleaved Memory Banks
Memory accesses are overlapped so that as the controller is reading/writing
from bank 1, the address of the next word is presented to bank 2. This gives
bank 2 a head start on the required access time. Similarly, when bank 2 is being
read, bank 1 is fetching/storing the next word.
The PC server 500 uses a two-way interleaved memory. In systems
implementing two-way interleaved memory, additional memory must be added in
pairs of single in-line memory modules (SIMMs) operating at the same speed
(matched SIMMs).
The PC server 720 uses a four-way interleaved memory with a word length of 64
bits. In this system, in order to interleave using 32-bit SIMMs, it is necessary to
add memory in matched sets of eight SIMMs each.
1.3.3 Dual Path Buses
A dual path bus allows both the processor and a bus master to access system
memory simultaneously. Figure 4 on page 8 shows a dual path bus
implementation.
