Chapter 1 Introduction 5
2. When the BIOS screen shows the LSI Logic Corp. message, press Ctrl-C to start
the LSI Logic Configuration Utility (see
FIGURE 1-3).

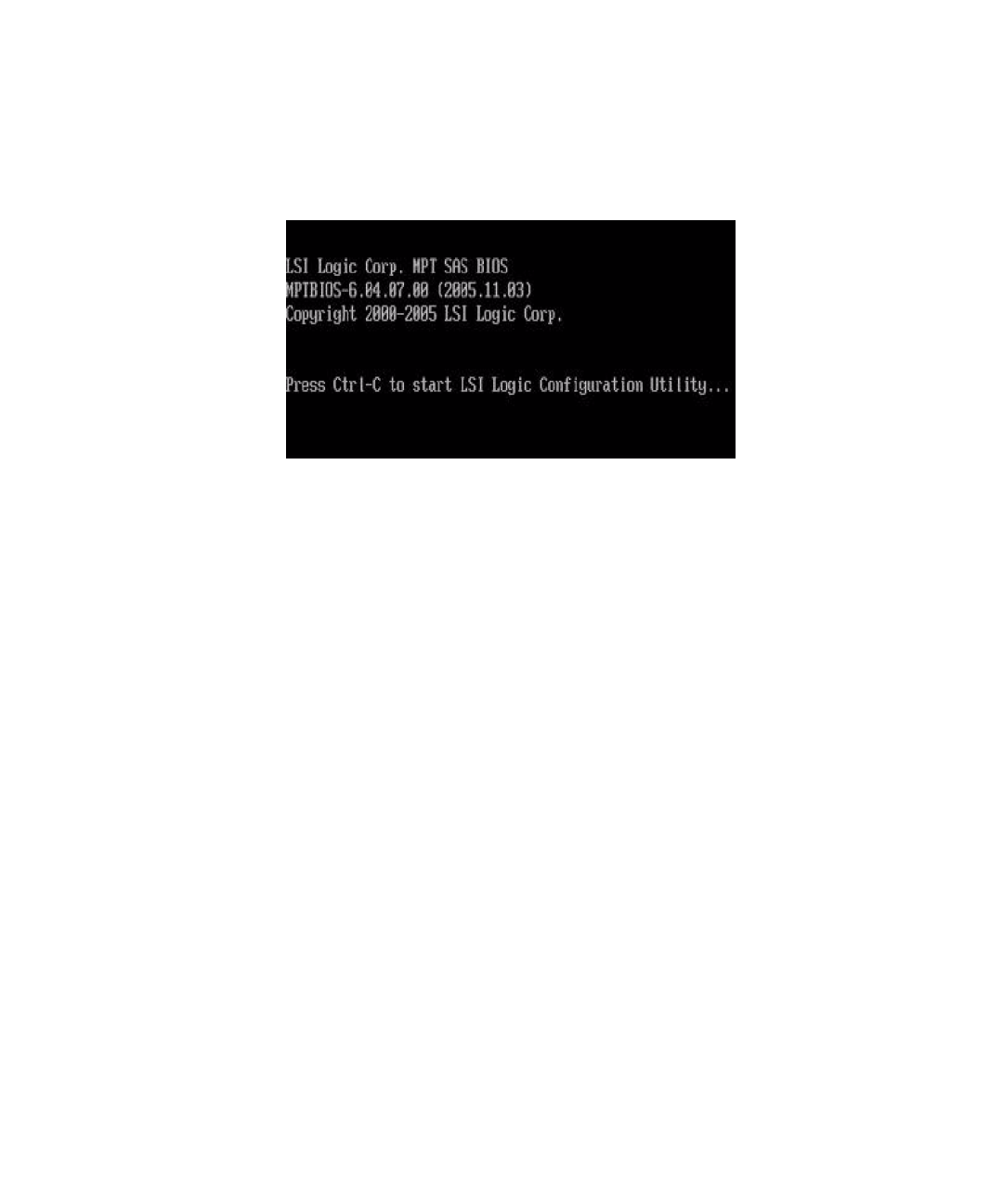

FIGURE 1-3 BIOS Screen Showing LSI Logic Corp. Message
3. Follow the on-screen instructions to create a mirrored RAID.
You can choose between RAID 1 (two mirrored disks with zero, one, or two hot
spares) or RAID 1E (three or more mirrored disks with zero, one, or two hot
spares).
4. Exit the LSI RAID configuration utility.
5. Install your OS on this RAID volume.
RAID Documentation
The LSI BIOS RAID configuration utility is described in detail in the Sun LSI 106x
RAID User’s Guide (820-4933), which is in the collection of documents for your server
at http://docs.sun.com.
This guide also covers the use of the MegaRAID Storage Manager (MSM) for Linux
and Windows operating systems, and the Solaris utility raidctl.
