2 Sun StorageTek PCI Express SAS 8-Channel Internal HBA Installation Guide • January 2009
Features
The Sun StorageTek PCI Express SAS 8-Channel HBA (SG-XPCIE8SAS-I-Z) is a low-
profile adapter that provides connectivity to a server’s internal disks. The SG-
XPCIE8SAS-I-Z provides eight-channel SAS connectivity for the Solaris™, Linux,
and Windows OS.

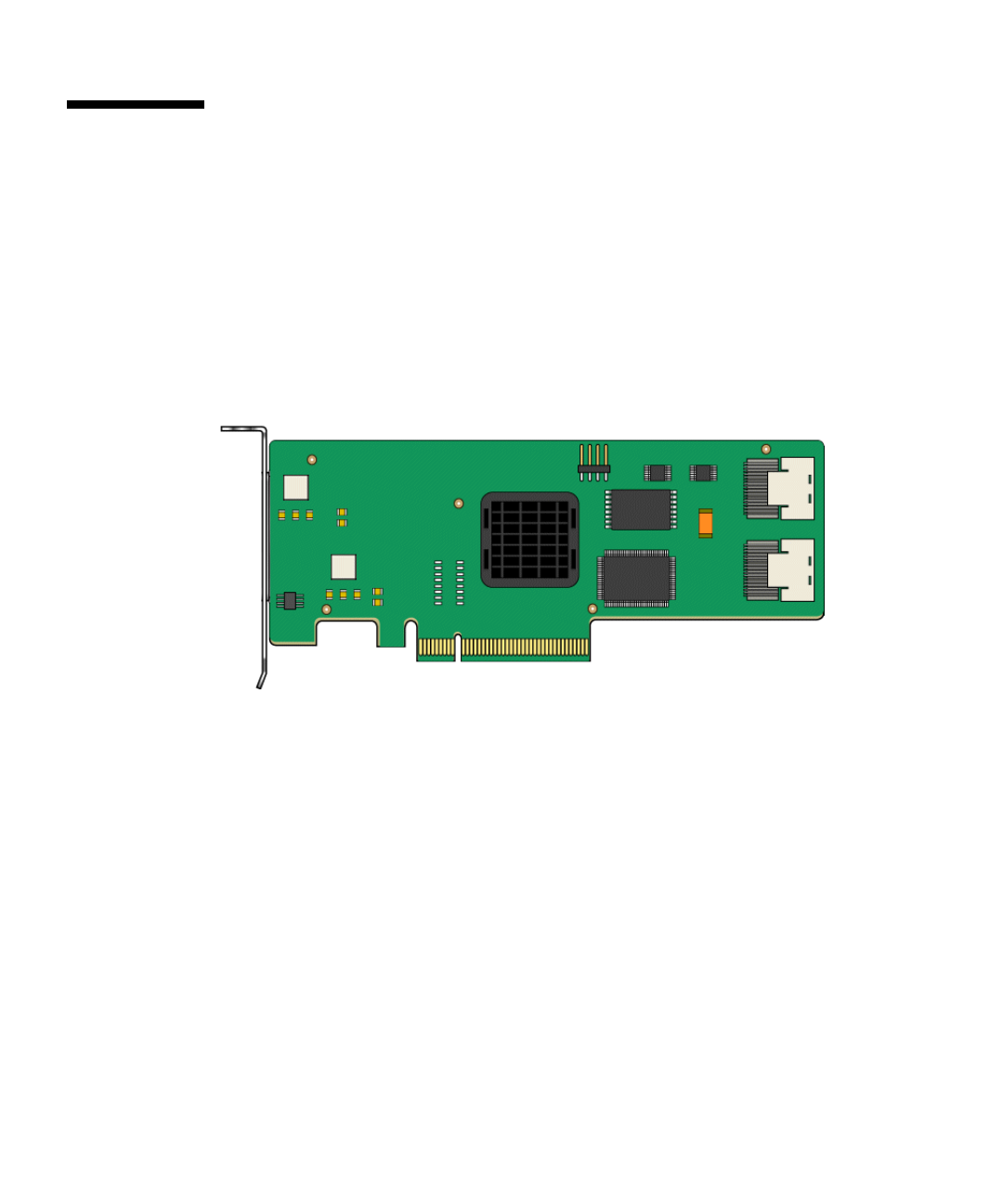

A simplified view of the board is shown in
FIGURE 1-1.
FIGURE 1-1 Sun StorageTek PCI Express SAS 8-Channel HBA
The SG-XPCIE8SAS-I-Z includes the following features:
■ Has eight independent SAS channels that support both SAS and SATA disks.
■ Has eight PCI Express physical layers (PHYs).
■ Is capable of 3.0 Gbit/s SAS link rates and 3.0 Gbit/s SATA link rates.
■ Provides field-programmable 2-MB flash ROM (contains BIOS, FCode, and
firmware) for booting in a Sun SPARC or Sun x64 processor-based host system.
■ Supports SSP, STP, and SMP as defined in the Serial Attached SCSI (SAS)
Specification, version 1.0.
■ Supports SATA as defined in the Serial ATA Specification, version 1.0.
■ Provides configurable drive spin-up sequencing on a per-PHY basis.
■ Simplifies cabling with a point-to-point, serial architecture.
■ Provides a serial, point-to-point, enterprise-level storage interface.
■ Is Restriction of Hazardous Substances (RoHS) 6 compliant.
