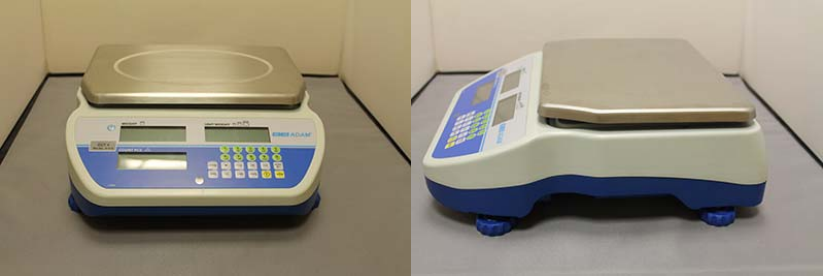

3.2 INSTALLATION OF CCT SCALES
• The CCT Series come with a stainless steel platform packed separately.
• Place the platform in the locating holes on the top cover.
• Do not press with excessive force as this could damage the load cell inside.
• Level the scale by adjusting the four feet. The scale should be adjusted such that the
bubble in the spirit level is in the centre of the level and the scale is supported by all
four feet.
• Turn the power ON using the switch located on the left of the weight display.
• The scale will show the current software revision number in the “Weight” display
window, for example V3.06.
• Next a self-test is performed. At the end of the self-test, it will display “0” in all three
displays, if the zero condition has been achieved.
