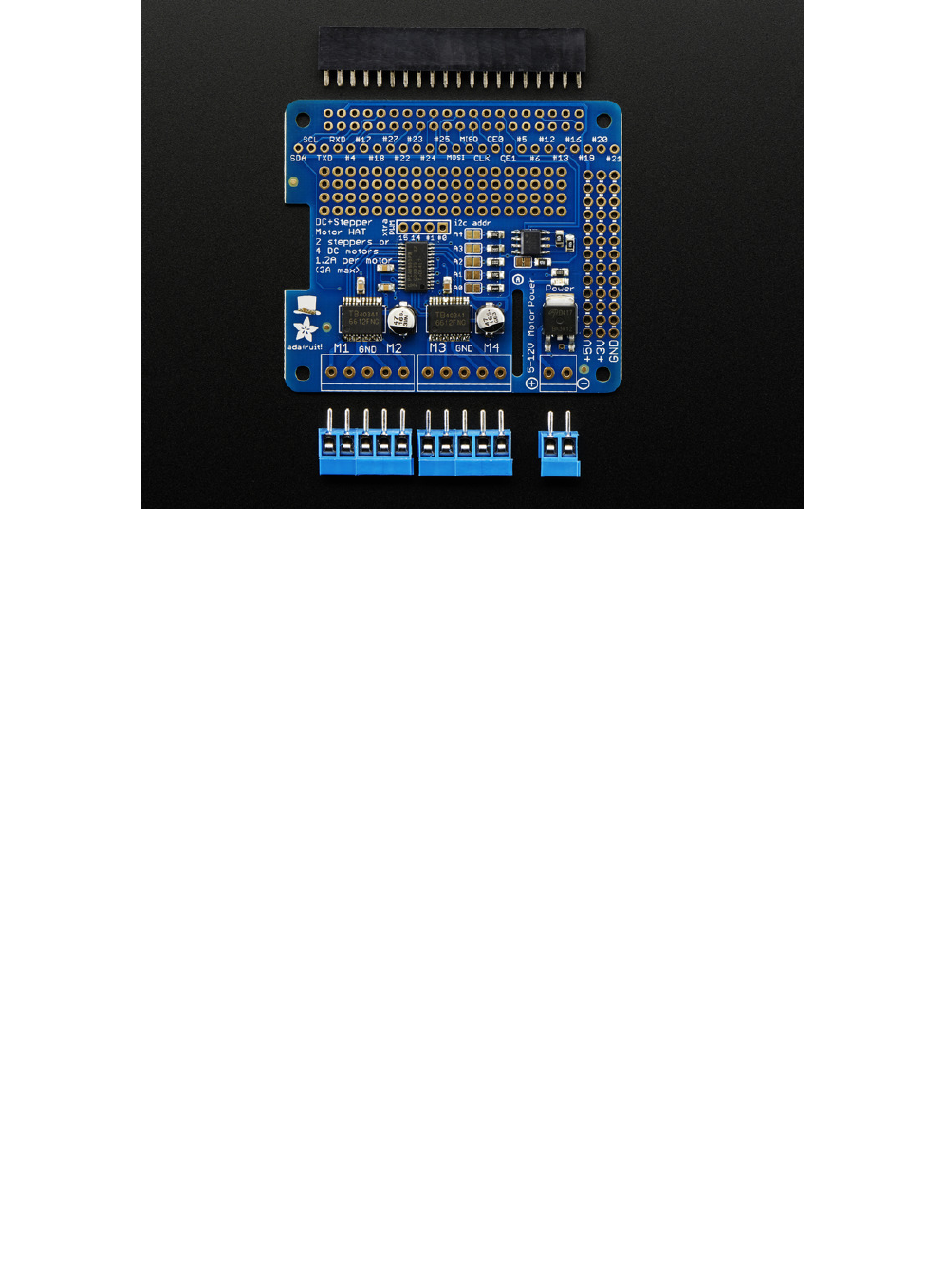

Comes with an assembled & tested HAT, terminal blocks, and 2x20 plain header. Some soldering is required to
assemble the headers on. Stacking header not included, but we sell them in the shop so if you want to stack HATs,
please pick one up at the same time. (http://adafru.it/2223)
Raspberry Pi and motors are not included but we have lots of motors in the shop and all our DC motors, and stepper
motors work great.
