I – 4 Turning Specific Operations

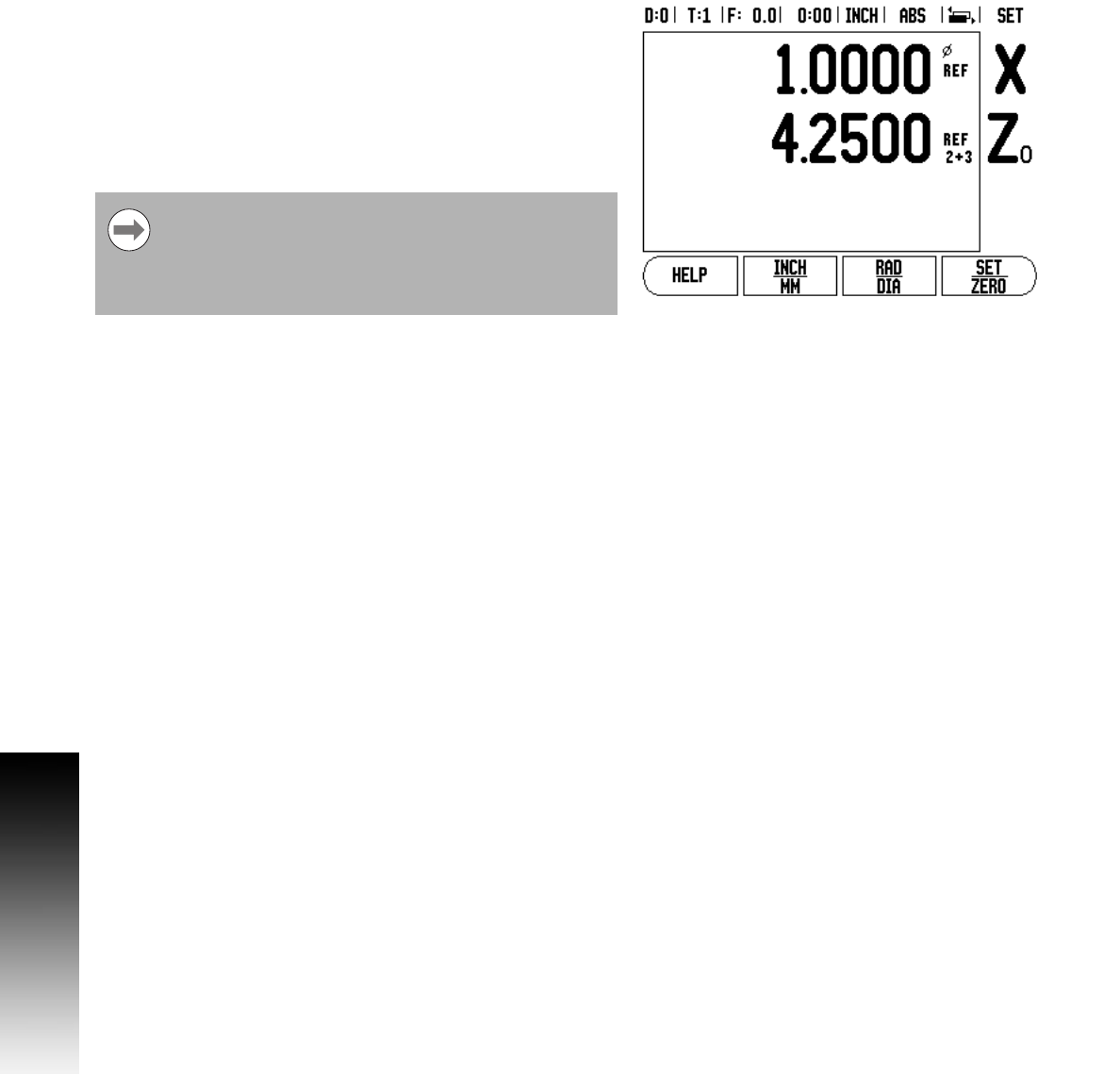

Enabling Z Coupling
8 To couple the Z0, and Z axis, and have the result displayed on the Z0
display, press and hold the Z
0 key approximately 2 seconds. The
sum of the Z positions will be displayed on the Z
0 display, and the Z
display will be blanked.
8 To couple the Z0, and Z axis, and have the result displayed on the Z
display, press and hold the Z key for approximately 2 seconds. The
sum of the Z positions will be displayed on the Z display, and the Z
0
display will be blanked. The coupling is preserved in between power
cycles.
Disabling Z Coupling
8 To disable Z Coupling, press the axis key of the display that is blank.
The individual Z
0, and Z display positions will be restored.
Moving either Z0, or Z inputs will update the coupled Z
position.
When a position is coupled, the reference mark for both
encoders must be found in order to recall the previous
datum.
