VUE 33
I – 4 Turning Specific Operations

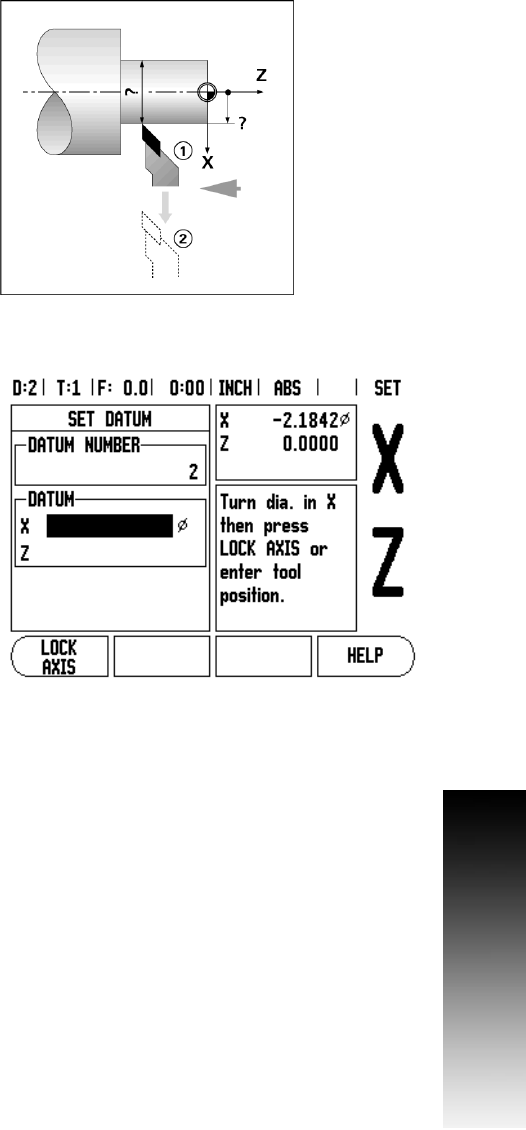

Setting Datums using LOCK AXIS Function
The Lock Axis function is useful for setting a datum when a tool is
under load, and the diameter of the workpiece is not known.
To use the Lock Axis function:
8 Press the DATUM hard key. The Cursor will be in the Datum
Number field.
8 Enter the datum number, and press the DOWN ARROW key to go
to the X axis field.
8 Turn a diameter in the X axis.
8 Press the LOCK AXIS soft key while the tool is still cutting.
8 Retract from the current position.
8 Turn the spindle off, and measure the workpiece diameter.
8 Enter the measured diameter, for example, 1.5”, and press ENTER.
