50 3 Manual Data Input
3.1 Manual Data Input (MDI)
Program Preset

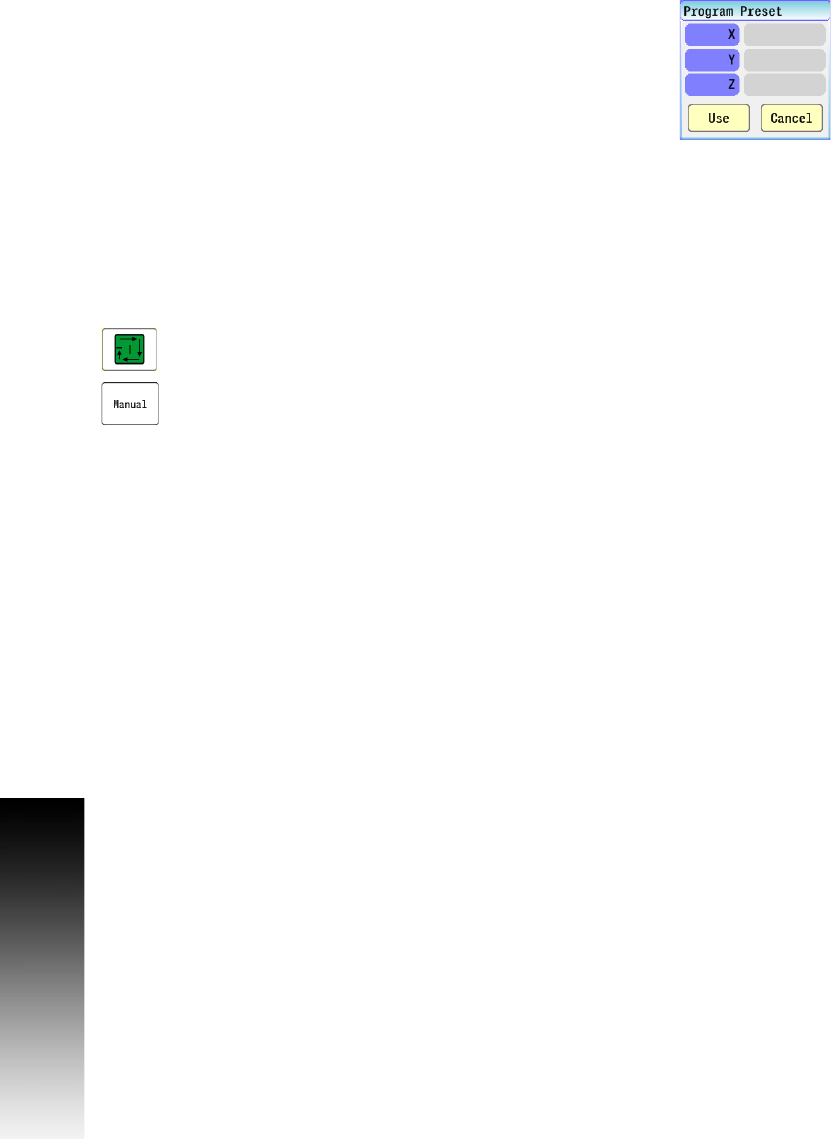

Touching the numerical values in the Preset Axes zone opens the
Program Preset dialogue, allowing the operator to preset one or more
axes.
Touch the Preset Axes zone, or select an axis in the zone by
touching that axes numerical value.
The Program Preset dialogue opens, and the axis that was touched
is automatically selected. The cursor will appear in the data entry
field next to the selected axes.
Enter the preset position values for each axis that is to be defined.
Touch Use to enter the data, or touch Cancel to exit without making
any changes.
When the Use button has been selected, the operator will be
prompted to “Press Start to run operation or Manual to cancel”.
Press the Start button to execute the change, or:
Touch the Manual button to cancel all changes.
