440 13 Off-Line Software
13.1 3500i Off-Line Software
13.1 3500i Off-Line Software

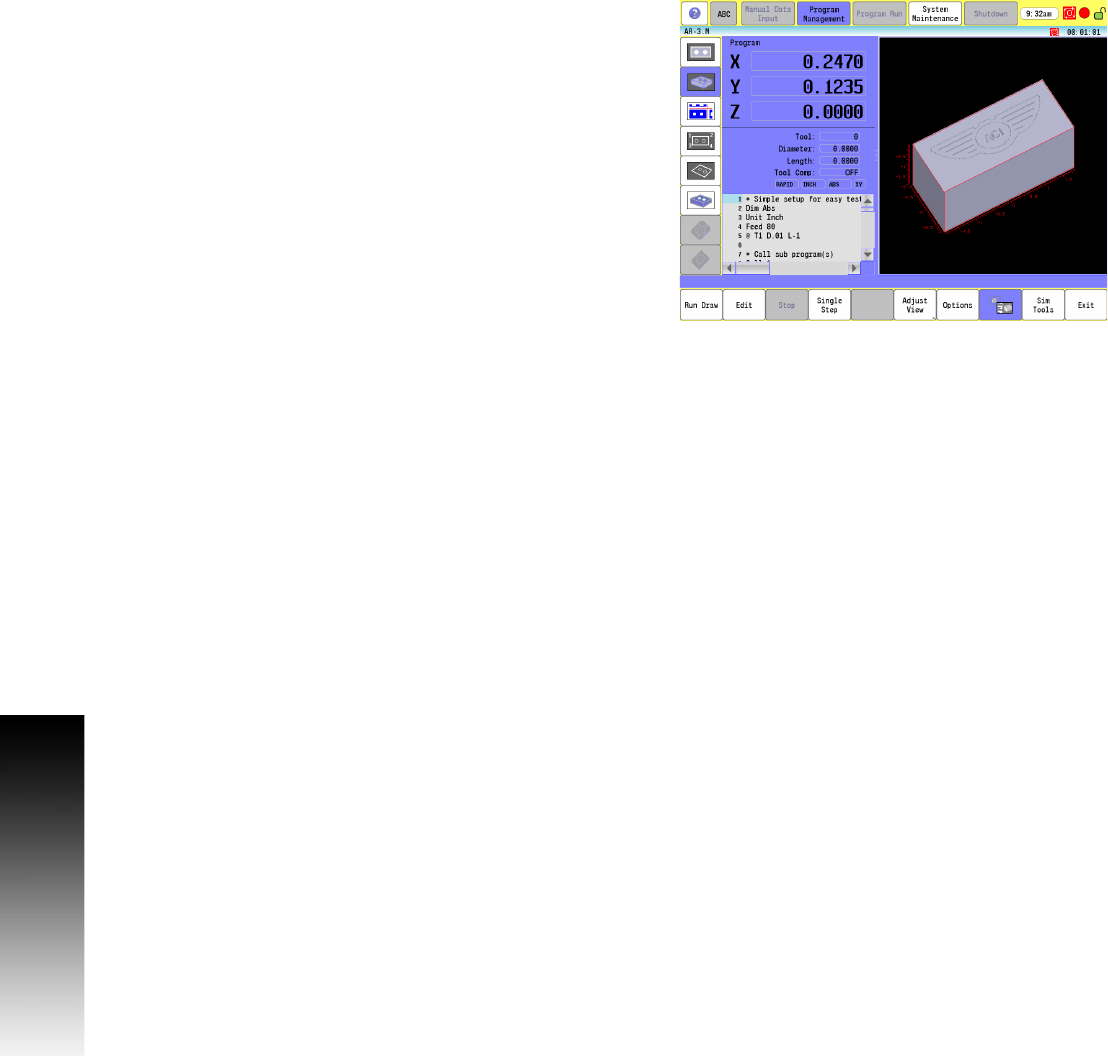

Off-Line Simulator
The off-line software provides a convenient way to write part
programs and simulate machine behavior using a standard Windows
based computer. Features and functionality are virtually identical to
that of the 3500i control itself.
System Requirements
Platform: IBM compatible PC.
Operating System: All 32-bit and 64-bit editions of **Microsoft
®
Windows
®
XP, Windows Vista
®
, and Windows
®
7 are supported.
Available Drive Space: 2GB or higher.
Memory: 1GB or higher.
Display Resolution: 1024x768 (XGA) or higher.
Ports: One available USB port for protection device.
Peripherals: Keyboard and pointing device.
**Microsoft
®
and Windows
®
are registered trademarks of Microsoft
Corporation in the United States and/or other countries.
