ACU-RITE 3500i 15

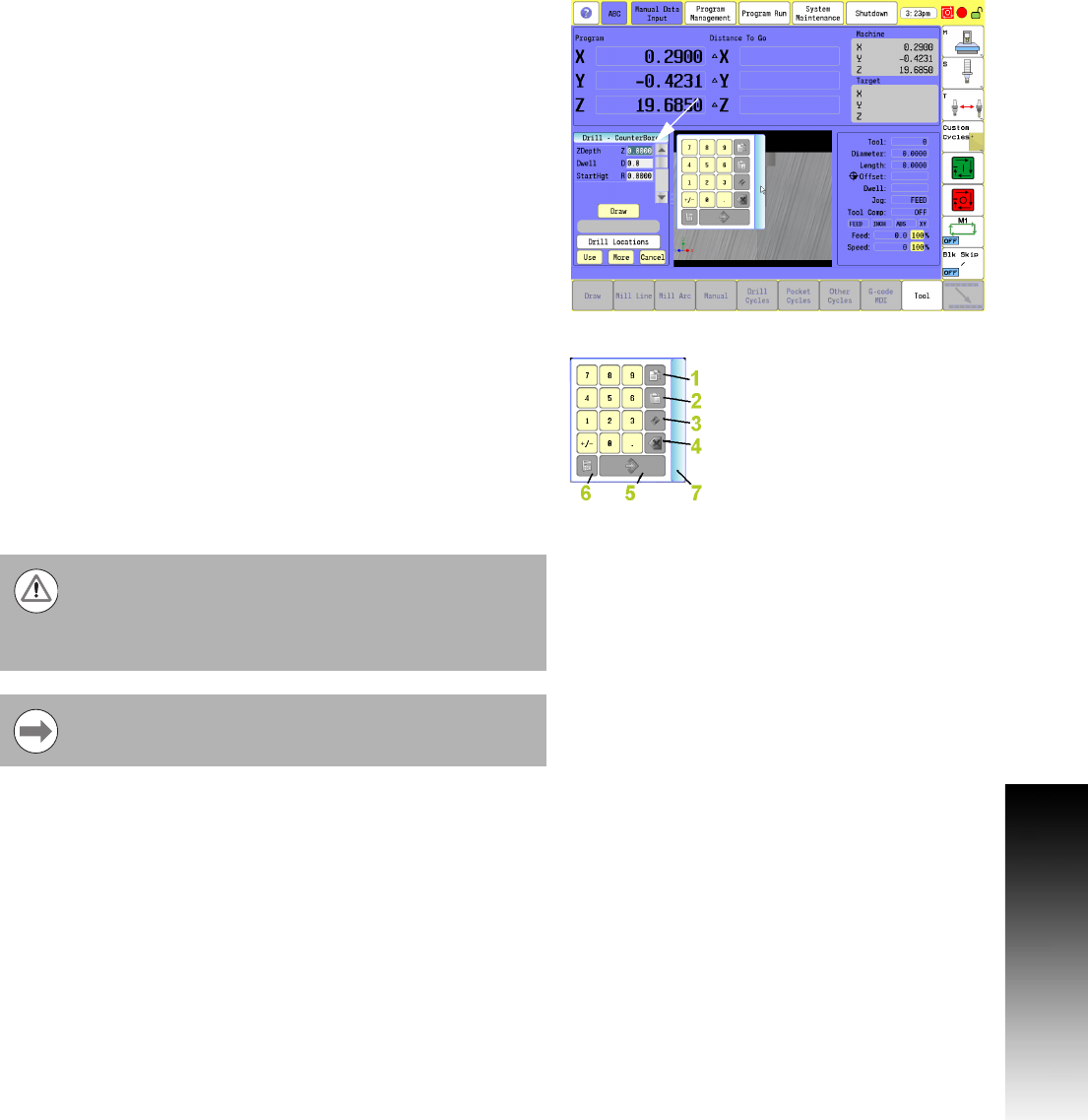

1.2 Visual Display Unit
Numeric touch pad
An on screen numeric touch keypad will automatically pop-up when
you enter a field that requires numeric data input.
When information has been entered using the on screen numeric
keypad, touch the Enter button. The next field requiring data input
will be highlighted. When finished, touch the Use button to enter the
data, or touch the Cancel button to cancel out of the current
dialogue. Touching either button will remove the numeric touch pad
from the screen.
1 Copy button
2 Paste button
3 Clear button
4 Backspace button
5 Enter button.
6 Calculator On-Off Button
7 Drag Bar
The on screen numeric touch keypad can be turned off to
prevent it from popping up if it is not required, e.g. a USB
keyboard is being used. Touch the ABC button to hide it.
To unhide the on screen numeric keypad, touch the ABC
button at anytime when it is highlighted.
The on screen numeric keypad is turned on by default
when ever the console has a power cycle.
