14 1 Introduction
1.2 Visual Display Unit

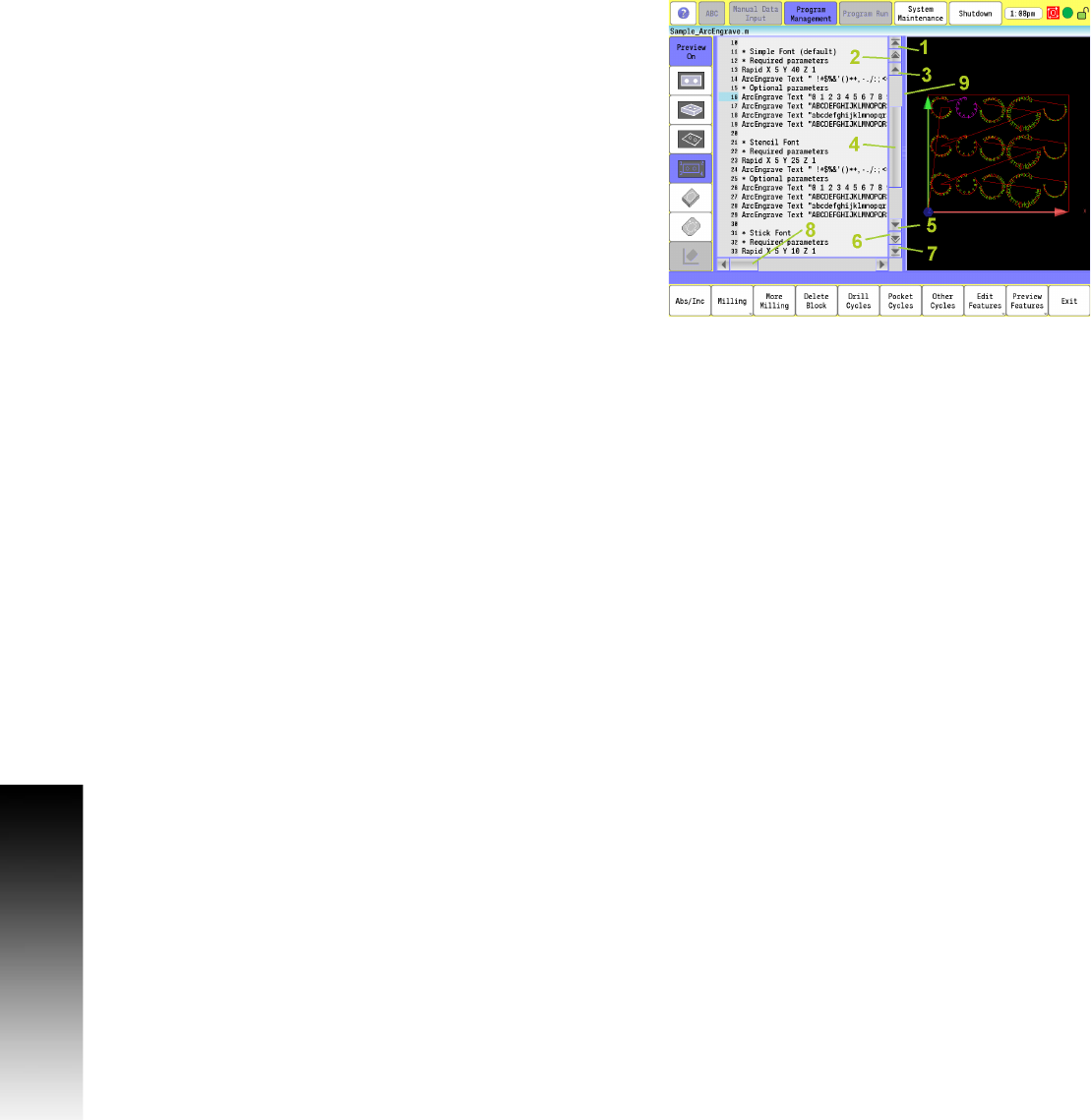

Programming Sliders
The following list describes the slider controls shown here.
Scroll Bar(s) are used to scroll through the active window.
Window Slider(s) are used to resize a window on the screen.
Scroll bars, and/or sliders are available in all screens that require
navigation assistance.
1 Jump to the beginning
2 Page Up
3 Up Arrow
4 Scroll Bar
5 Arrow Down
6 Page Down
7 Jump to the end
8 Horizontal Bar
9 Window Slider
