372 11 G-Code Edit, Help, & Advanced Features
11.3 Edit Help
11.3 Edit Help
Activating Edit Help

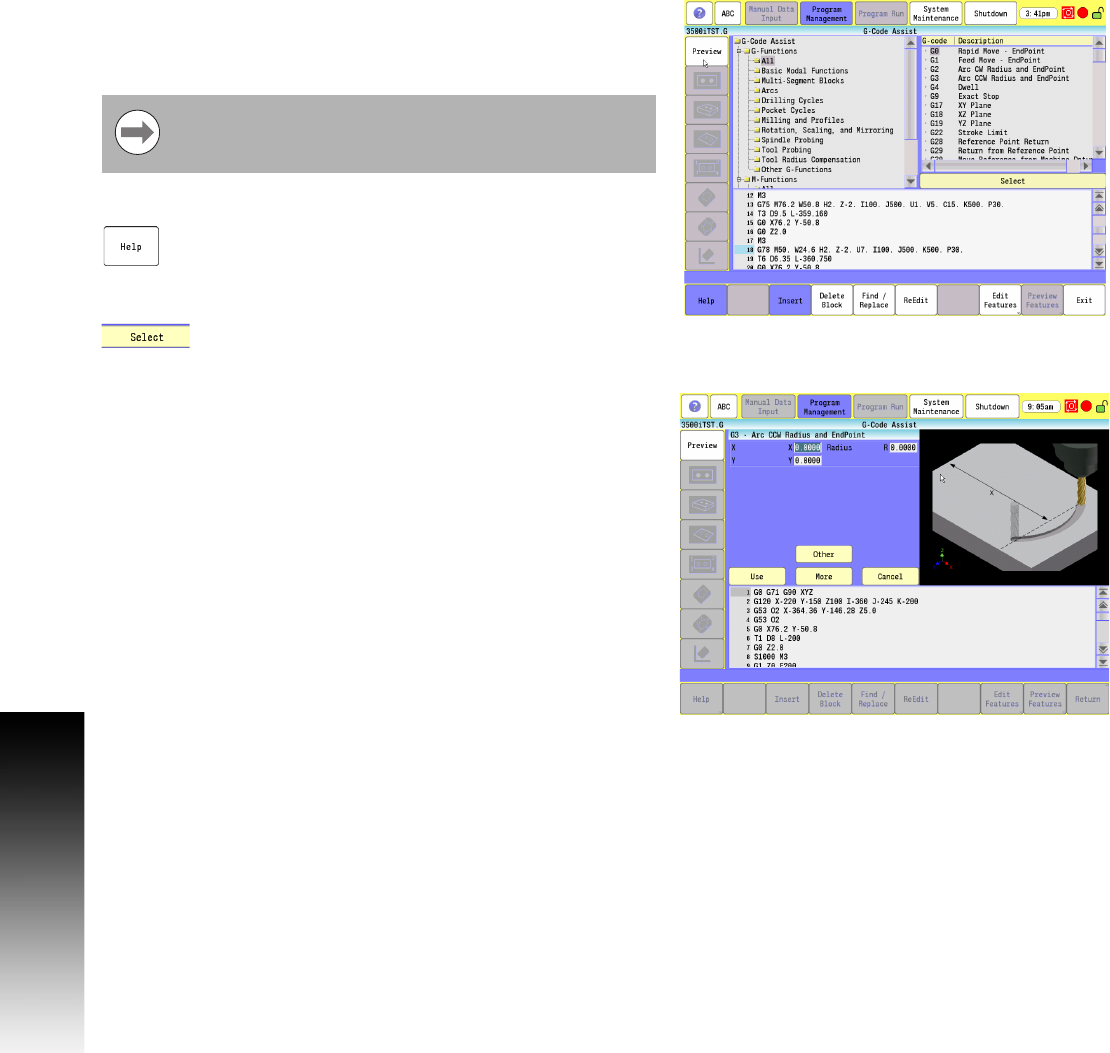

G-Code Assist, Edit Help provides diagrams, and entry fields to
program move types, and Canned Cycles. The following describes
how to activate the Help Screen for a G-Code, and type values in the
appropriate entry fields.
To access the Edit Help Screen:
In Edit Mode, with the appropriate program opened.
Touch Help. The Edit Help screen activates.
Select the functional group from the top left, and the specific
G-Codes are displayed on the top right.
Select the specific G-Code that you want to add, and
touch the Select key (or double tap the G-Code
number).
Touch the More button, and Other button to provide additional data
if needed.
Touch the Use button to add the code to your program, or Cancel to
exit without making a change.
The screen returns to the Edit mode.
A program must be open in edit mode to use Edit Help.
The Help button is a toggle key that opens the Help
screen, and touched on again, exits the Help screen.
