ACU-RITE 3500i 359

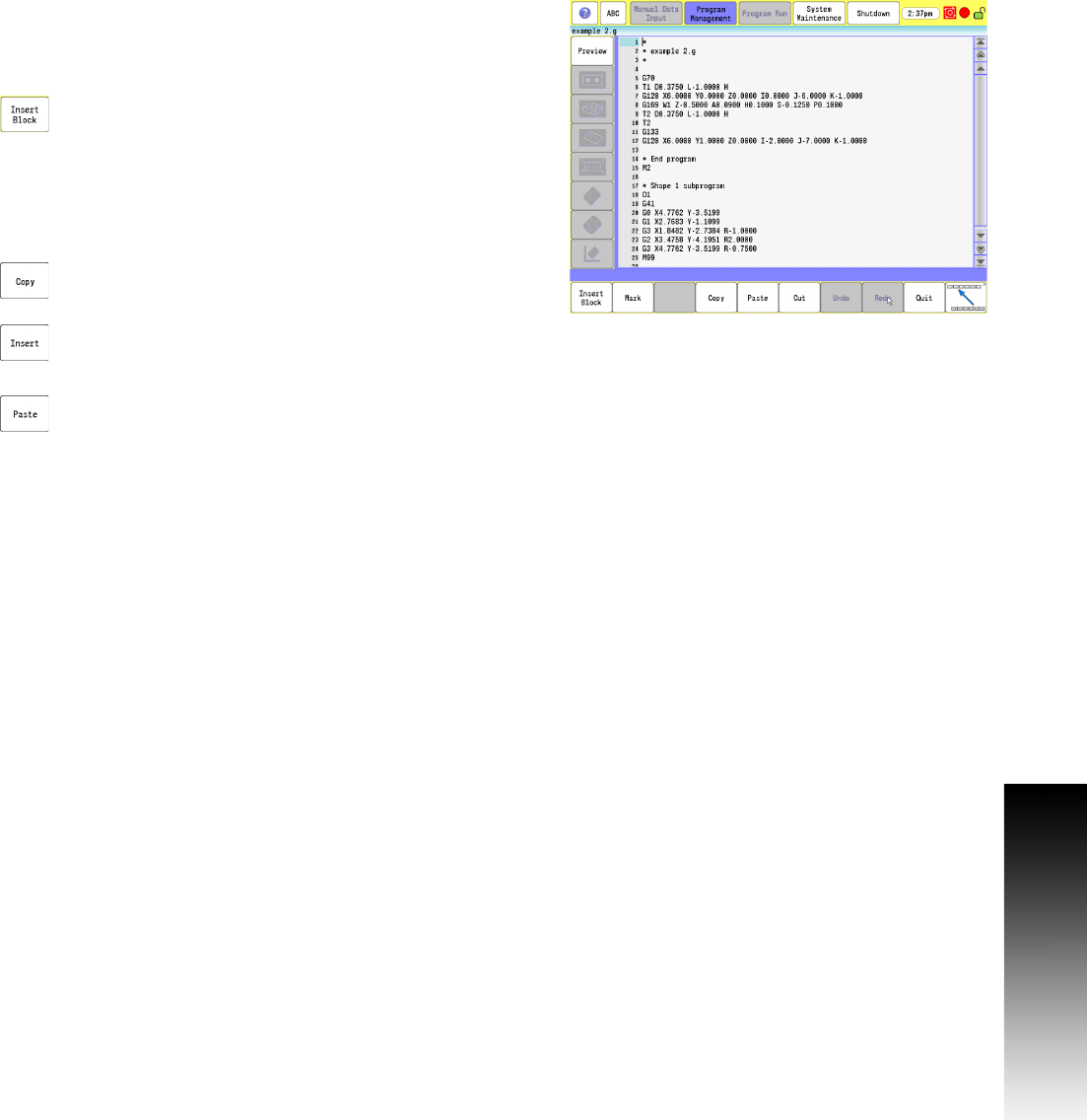

11.1 G-Code Program Editing
Inserting a program block:
To insert a program block (or blocks) in an existing program, follow
these steps.
In Edit Mode, touch on the Edit Features button. Place the cursor
at the beginning of a block where a new block is to be inserted.
Touch the Insert Block button. A new line is inserted,
and the remaining program shifts down. The new
program block can now be inserted.
Repeat these steps to insert a block at any location.
Copy/Paste Blocks in a program
Multiple blocks can be copied, and inserted in the same way.
Highlight the selected blocks to copy, and touch the
Copy button.
Place the cursor at the beginning of a block where the
copied blocks are to be inserted, and touch the Insert
Block button.
Place the cursor at the beginning of the new empty
block line, and touch the Paste button.
The selected blocks have now been added in at that location.
