358 11 G-Code Edit, Help, & Advanced Features

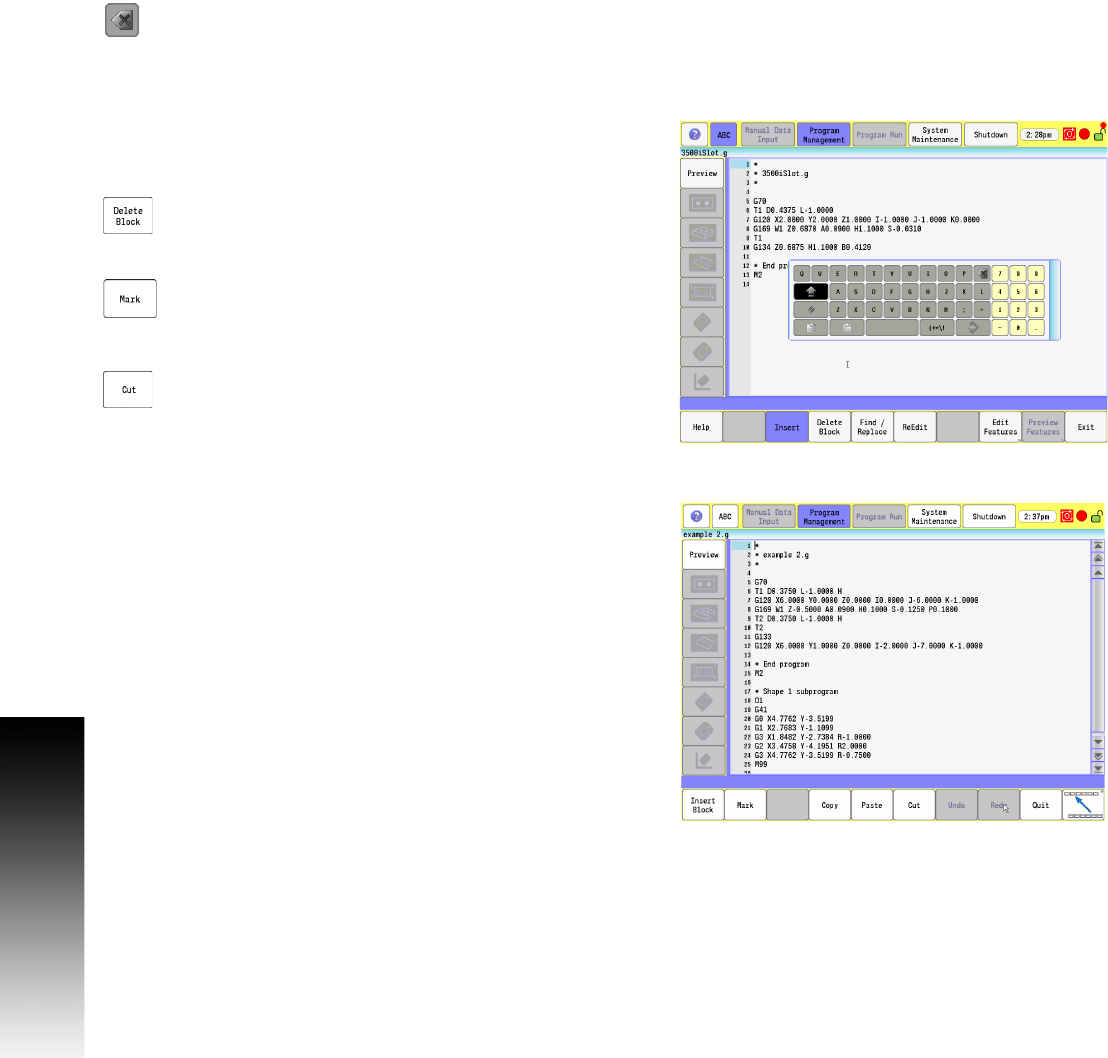

11.1 G-Code Program Editing
Delete a Character:
While in the Edit Features Mode, place the cursor to the right of the
character to be deleted.
Use the Back Space button to delete one character at
a time. If multiples characters, or blocks are
highlighted, the Back Space button will delete all that
is highlighted.
Deleting a program block:
There are two other ways to delete program blocks from a Program
Listing. The following provide the steps necessary to delete a block,
or blocks.
In Edit Mode, place the cursor at the beginning of the
first block to be deleted. Touch the Delete Block
button to delete one block at a time.
In Edit Features, place the cursor at the beginning of
the first block to be deleted. Touch the Mark Block
button, and use the Arrow keys to mark additional
blocks from the cursor location.
Touch the Cut button to delete the block, or blocks
selected.
