ACU-RITE 3500i 353
11.1 G-Code Program Editing

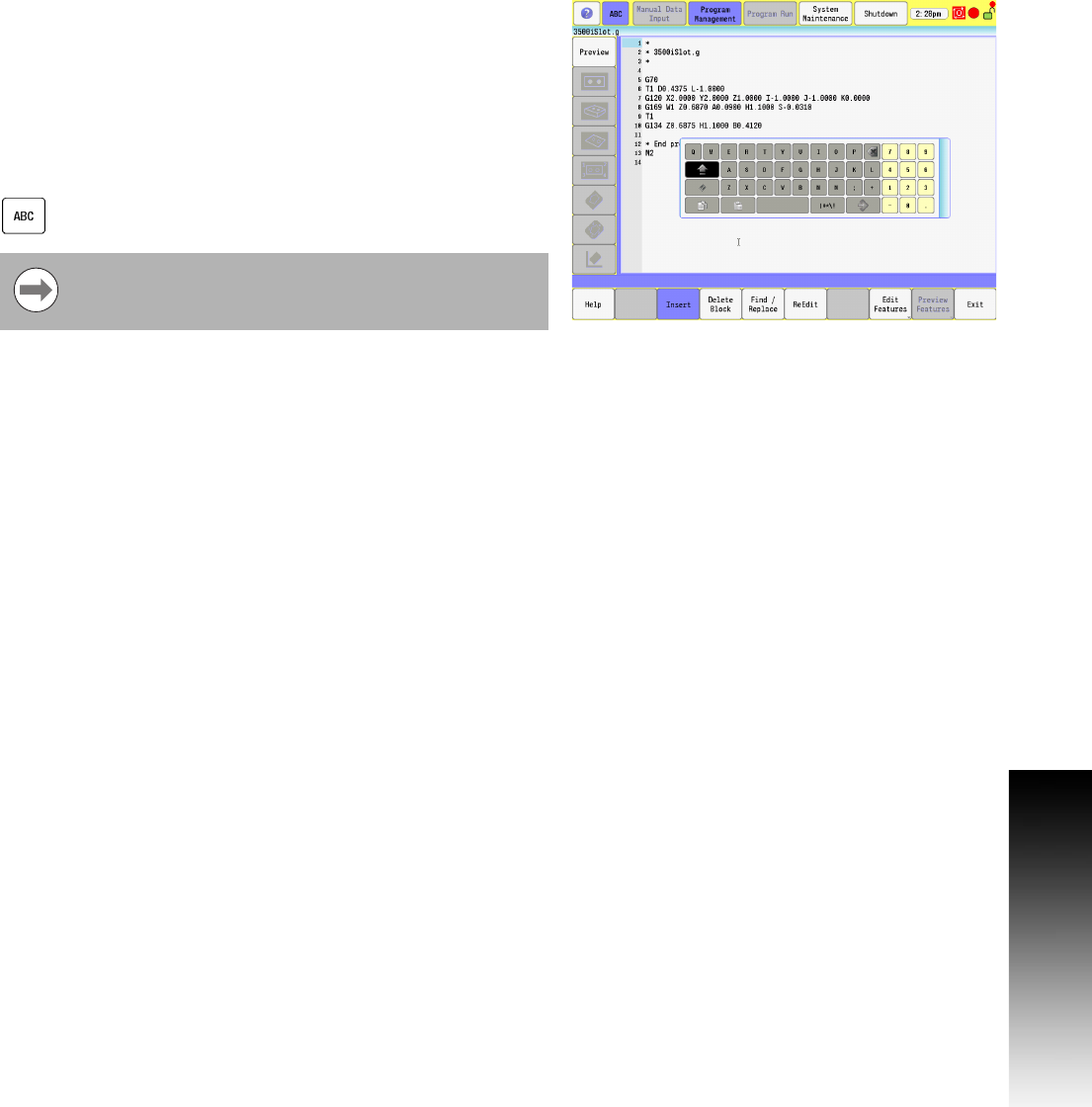

Program Edit Screen
The program edit screen provides the name of the program in the
upper Status Bar, and the program is displayed in numerical order in
the main window. Edit option buttons are available in the bottom
menu bar.
Each time a program is opened for edit, the touch screen Keyboard
opens with it. The Keyboard can be dragged to a more convenient
location, or turned off when not needed.
To turn the Keyboard off:
Touch the ABC button to toggle the Keyboard on, or off.
The G-Code program edit screen is very similar to the
Conversational program edit screen, previously described
in Chapter 6.1.
