11.1 G-Code Program Editing
11.1 G-Code Program Editing
The 3500i supports G-Code programming. This section provides an
overview of G-Codes supported, and features available when using
G-Codes.
Activating Edit Mode

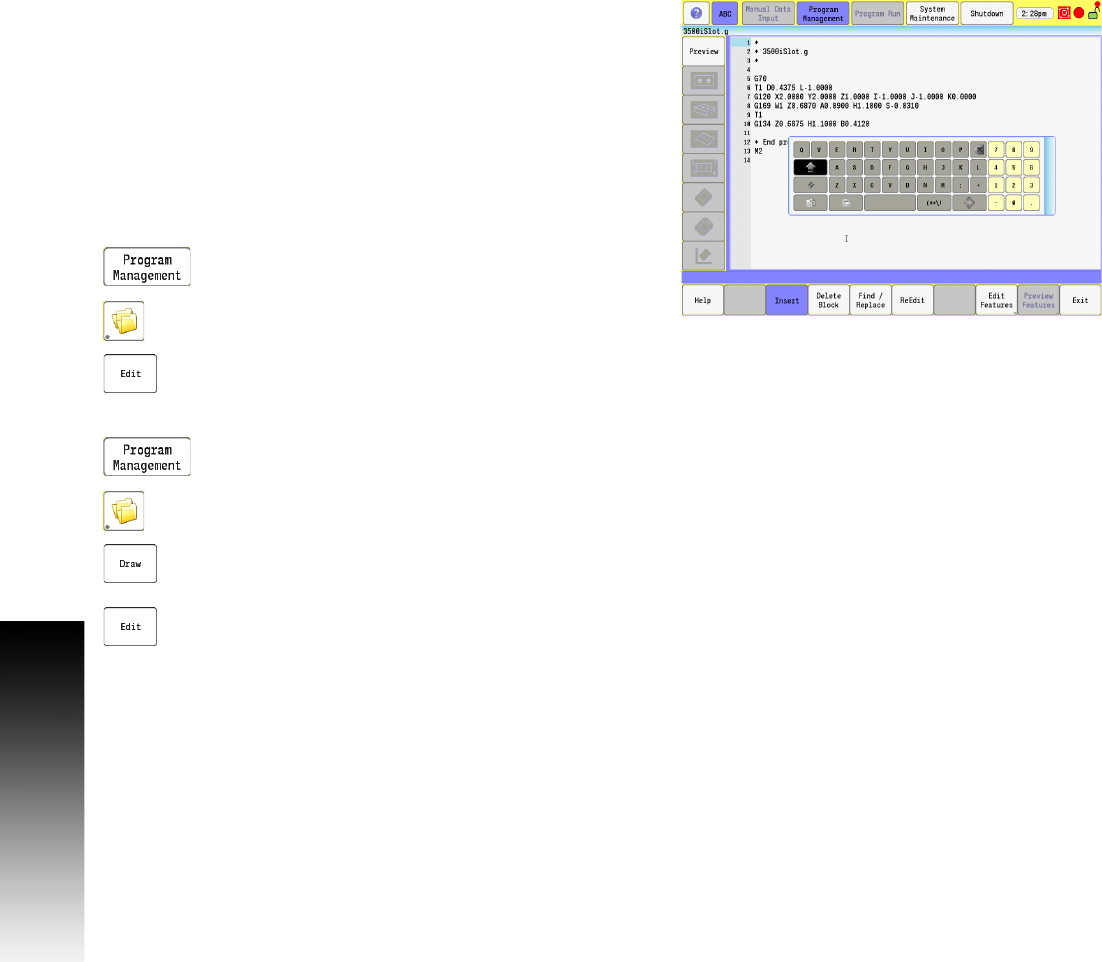

Program blocks are written using the Edit button. When in the
Program Manager, having the program selected, touch the Edit
button. The program will open in the display, and can now be edited.
A program can also be edited from the Draw mode. This is also
accessed through the Program Manager with a program selected.
Touch the Draw button. When in Draw mode the Edit button is
available for editing the Program. Touch the Edit button, and the
program will open in the display, and can now be edited.
Use either of the following methods to enter Edit mode.
One:
Select the Program Management button.
Select the Folders button to locate the program for
editing, and select the program.
Touch the Edit button in the bottom menu bar to
enter the Edit mode.
Two:
Select the Program Management button.
Select the Folders button to locate the program for
editing, and select the program.
Touch the Draw button in the bottom menu bar, to
enter the Draw mode.
From the Draw Program, touch the Edit button in the
bottom menu bar to enter the Edit mode.
