ACU-RITE 3500i 349
10.1 CAM Programming

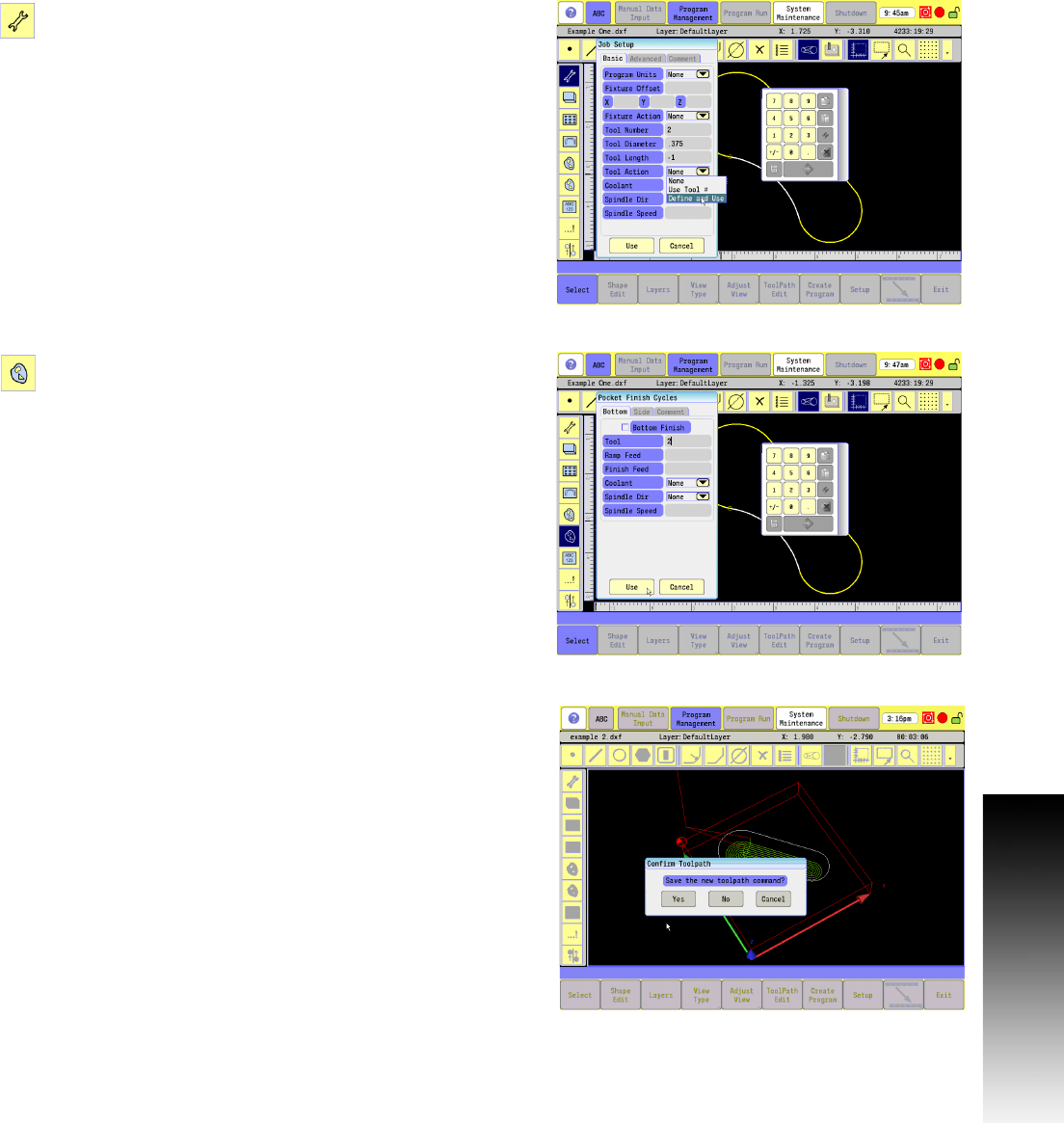

Select the Job Setup button from the Vertical button
bar to open the Job Setup dialogue.
Enter “2” for the Tool Number.
Enter .375 for the Tool Diameter.
Enter -1 for the Tool Length.
Enter Define and Use Tool for the Tool Action.
Touch Use to accept the Job Setup.
Select the Pocket Finish Cycle button from the
Vertical button bar to open the Pocket Finish Cycle
Form dialogue.
Tool: Enter 2.
Select Bottom Finish check box.
Touch Use button.
Verify Tool Path graphic, and touch Yes to accept.
