ACU-RITE 3500i 7
1.2 Visual Display Unit

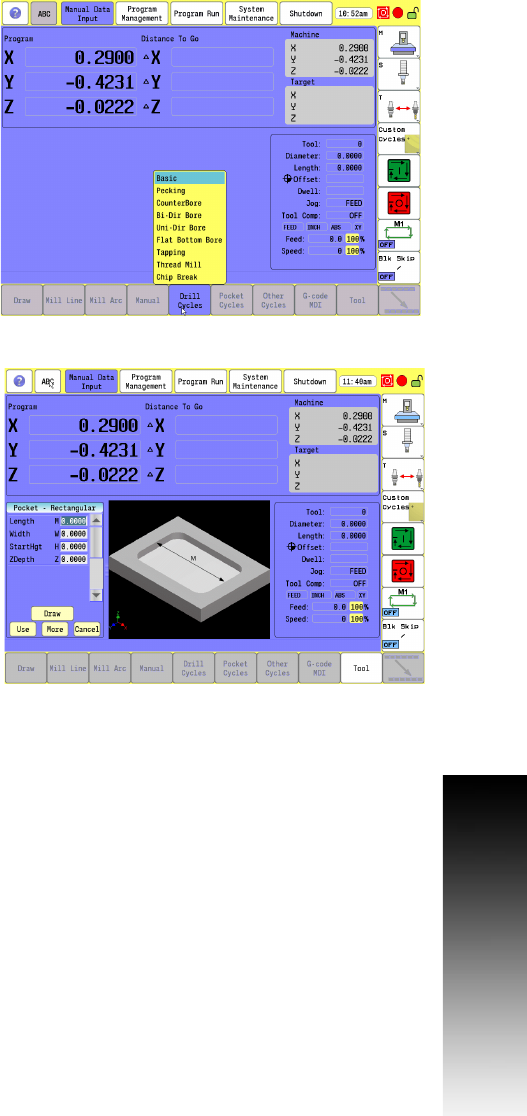

Menus, Dialogues, and Forms
This section describes general overview of the pop-up menus,
dialogues, and forms provided by the 3500i. Complete information is
provided in this manual where specific examples of actions are being
explained.
Pop-up menus allow you to make a selection from multiple options.
When a pop-up appears touch the desired selection or use the ARROW
keys and touch Enter.
Some features will require entering data in a form. Enter the required
data in the field; touching Enter moves to next field. When done touch
the Use button to have the 3500i accept the feature or touch the
Cancel button. Additional buttons may be present based on the form
being used.
Operator Prompts
Actions that require immediate data input to continue the operation,
the 3500i will prompt for the required information. The required data
can be entered with the on screen keyboard, and numeric keypad.
Cursor
The 3500i uses a cursor, or highlight to mark data field for selection or
editing. Touch the screen, or use the ARROWS to move the cursor, or
highlight. The cursor can be activated in a field that is highlighted by
touching the highlighted field, or using the left/right ARROW keys.
