10.1 CAM Programming
Editing a Line
Parameter values are interdependent. When one parameter value is
changed other parameters are updated to reflect the change that was
made. After a change to a parameter has been made touch inside
another parameter field, or use the ENTER button to tab to another
parameter field, to review the automatic changes.

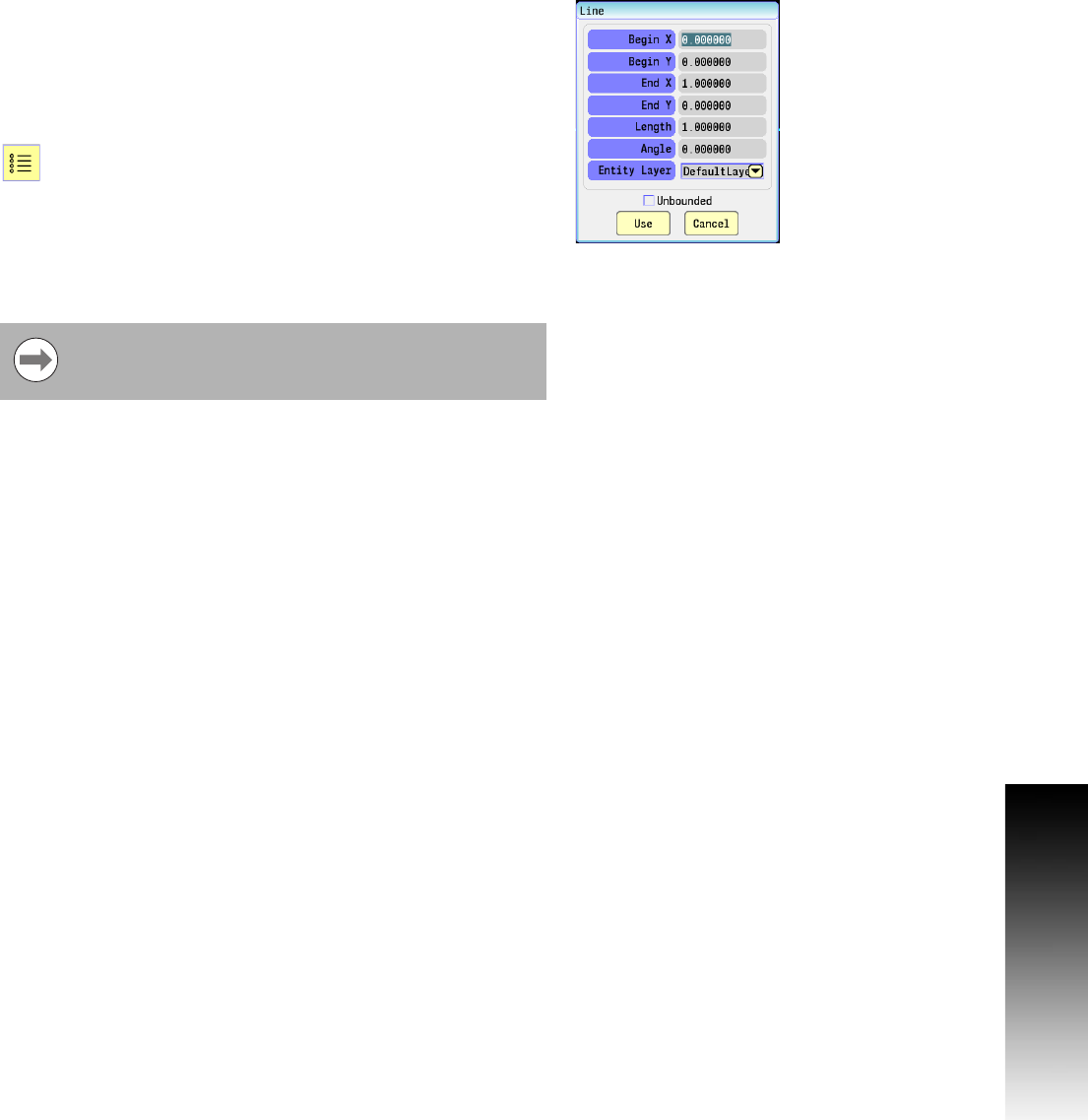

To edit a line:
Select the Properties button.
Select the line to be edited. The Line properties dialogue opens.
Edit the parameters to be changed.
Select the Use button to save the changes and close the Line
properties dialogue, or Cancel to quit without saving.
When the Unbounded box is checked, the selected end points of
the line are no longer constrained, and it’s length is changed to
(infinity) a maximum length.
The first two steps can also be achieved by right clicking
on the geometry to be edited, and selecting Properties
from the pop-up dialogue.
