10.1 CAM Programming
Point Tool buttons

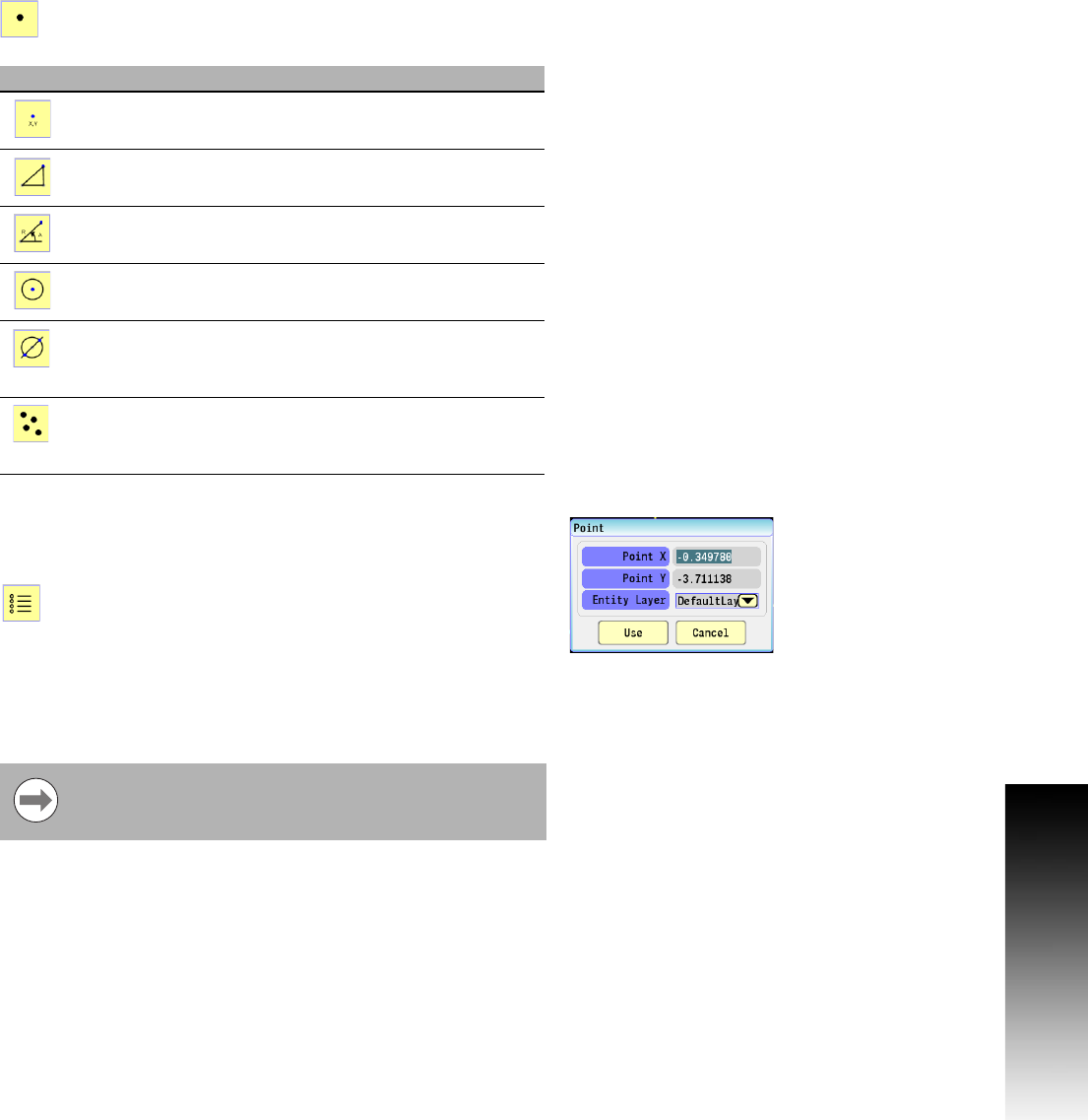

Touching the Point Tool button activates the
following buttons in the Vertical button bar.
Point Editing
Existing points can easily be edited.
To edit a point:
Select the Properties button.
Select the point to be edited. The Point properties dialogue opens.
Edit the parameters to be changed.
Select the Use button to save the changes and close the Vertex
properties dialogue, or Cancel to quit without saving.
Button Function
Select X, Y Coordinates to create a point by
specifying X and Y coordinates.
Select Incremental distance point to create a point
at an incremental distance from another point.
Select Polar coordinate Point to create a point
using polar coordinates (radius and angle).
Select Center Point to create a point as the center
of an existing circle or arc.
Select Intersection Point to create a point at the
intersection of any two basic geometry items
(line-line, line-circle, circle-circle).
Select Free Hand Point Location to create points by
using the left mouse button and touching in the
graphics area.
The first two steps can also be achieved by right clicking
on the geometry to be edited, and selecting Properties
from the pop-up .
