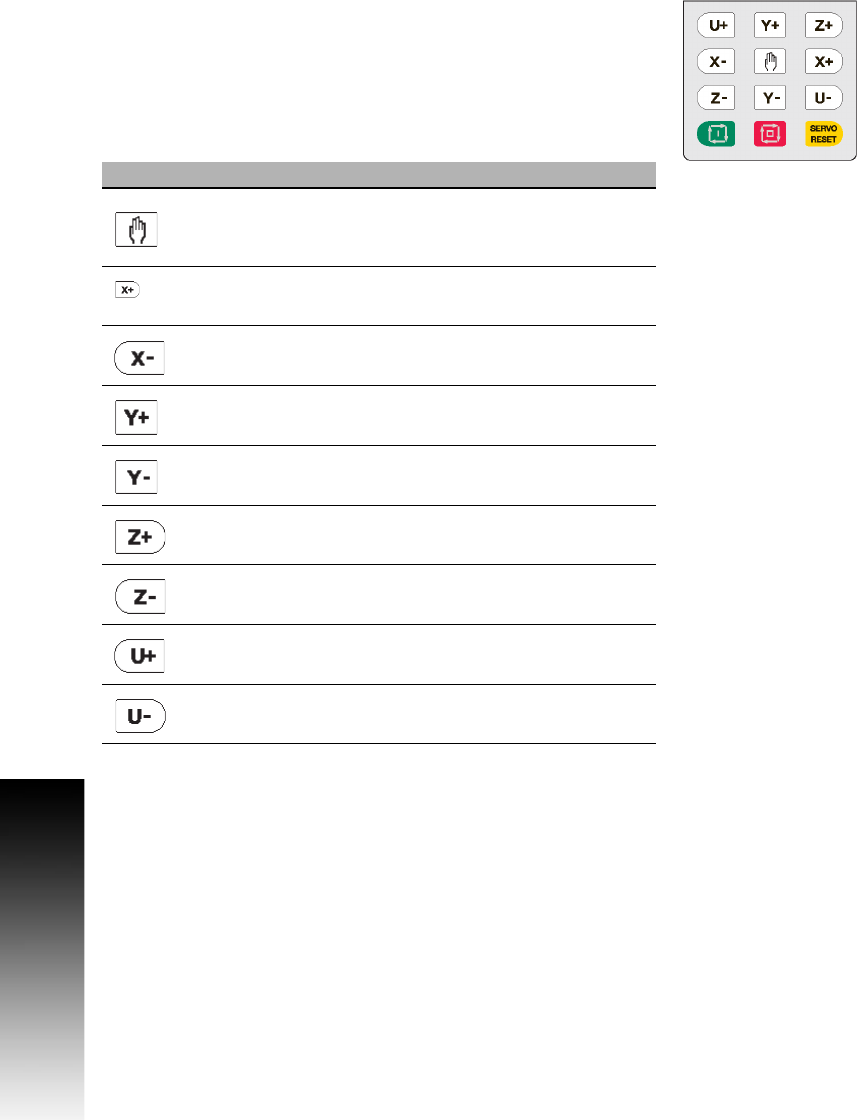

274 9 Running a Program on the Machine
9.1 Running a program
Axis Jog keys
The Axis Jog keys are located on the front panel of the console.
From the Manual Data Input Mode, pressing the JOG key repeatedly
will toggle through the available modes, and feed rates.
Description of how to use the Jog keys have been explained
previously. See “Jog Mode Moves” on page 34.
Key Name Function
JOG
JOG Cycles the CNC through manual movement
modes: RAPID JOG, JOG FEED, JOG @ 100,
JOG @ 10, JOG @ 1
X+ Manually moves X+ axis in positive direction
X- Manually moves X- axis in negative direction
Y+ Manually moves Y+ axis in positive direction
Y- Manually moves Y- axis in negative direction
Z+ Manually moves Z+ axis in positive direction
Z- Manually moves Z- axis in negative direction
U+ Manually moves U+ axis in positive direction
U- Manually moves U- axis in negative direction
